Airwell SWS 1602 HFС 407C [37/48] Dimensions in mm
![Airwell SWS 1602 HFС 407C [37/48] Dimensions in mm](/views2/1409257/page37/bg25.png)

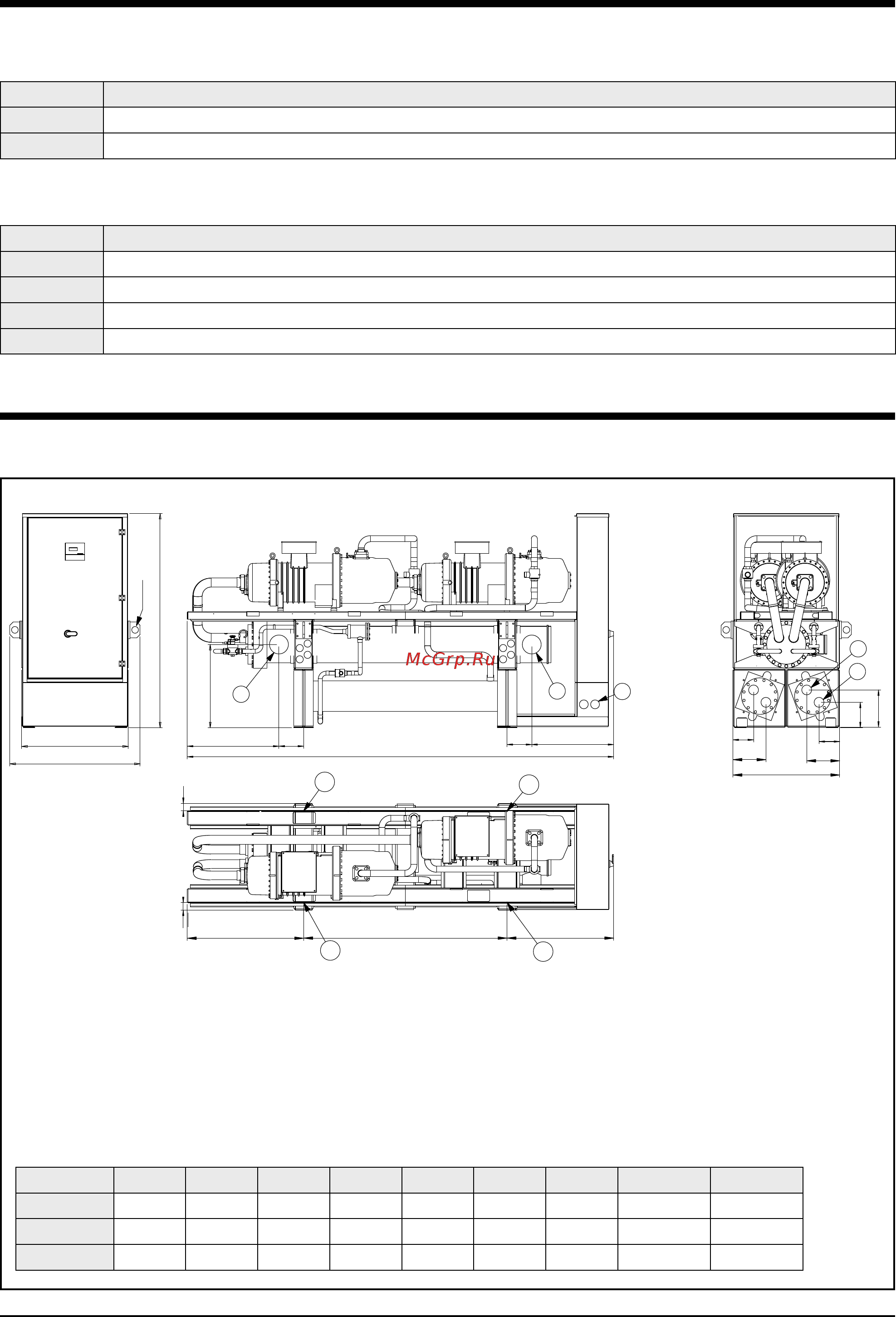

Page 37
SWS STD Frame 1
Dimensions A B C D E F G 1-2 3-4
1002-1202 800 235 715 205 275 245 315 DN125 (5") 2"1/2 GAS F
1402-1602 800 235 715 205 275 245 315 DN125 (5") 2"1/2 GAS F
1902 815 220 730 185 295 225 335 DN150 (6") 3" GAS F
Legend :
* For shipping only
1 Evaporator water inlet
2 Evaporator water outlet
3 Condenser water inlet
4 Condenser water outlet
5 Power supply cable entry
P1, P2, P3 and P4 : vibration isolator fixing points
Frame Sizes
SWS / SWR - HFC 407C - STD / LN / ELN Versions
Frames SWS / SWR Sizes
1 1002, 1202, 1402, 1602 and 1902
2 2202, 2602, 3002, 3402, 3802, 4202 and 4402
SWS / SWR - HFC 134a - STD / LN / ELN Versions
Frames SWS / SWR Sizes
1 1602 and 1902
2 2202, 2212, 2352, 2502, 2652, 2802 and 3012
3 3202, 3412, 3602 and 4212
4 4602 and 4802
Dimensions (in mm)
