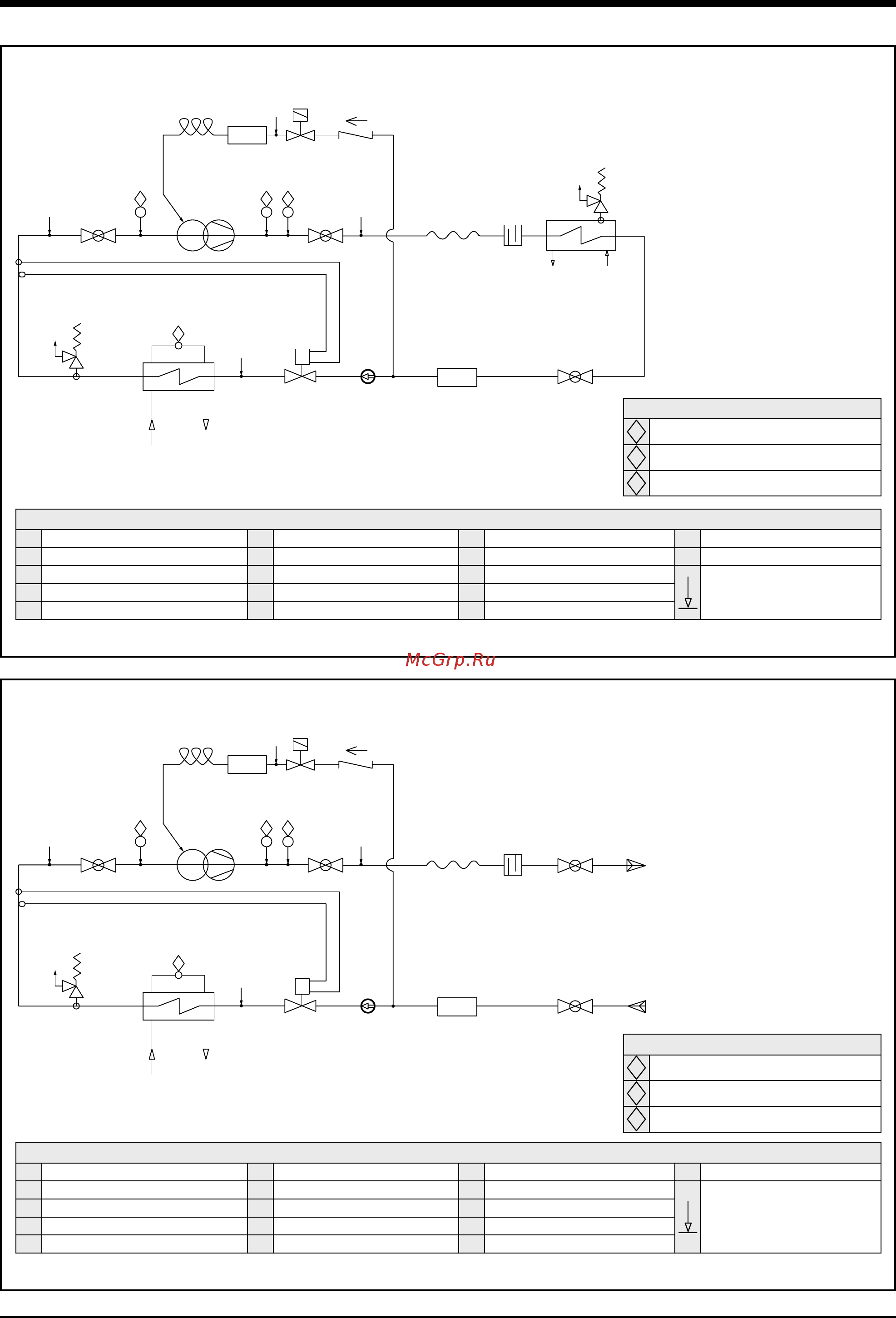

Refrigerant Flow Diagrams
SWS Units











COMPONENTS
1 Screw compressor 6 Safety valve 11 Evaporator 16 Filter-drier (optional)
2 Discharge valve 7 Liquid valve 12 Safety valve 17 Capillary (optional)
3 Flexible pipe (ELN version only) 8 Filter-drier 13 Suction valve (optional)
Pressure tapping and
refrigerant charging/
discharging points
4 Muffler (ELN version only) 9 Sight glass 14 Non-return valve (optional)
5 Condenser 10 Thermal expansion valve 15 Solenoid valve (optional)
SAFETY DEVICES
High pressure switch
Transducer
Water differential pressure switch
SWR Units









COMPONENTS
1 Screw compressor 6 Liquid valve 11 Safety valve 16 Capillary (optional)
2 Discharge valve 7 Filter-drier 12 Suction valve (optional)
Pressure tapping and
refrigerant charging/
discharging points
3 Flexible pipe (ELN version only) 8 Sight glass 13 Non-return valve (optional)
4 Muffler (ELN version only) 9 Thermal expansion valve 14 Solenoid valve (optional)
5 Discharge valve 10 Evaporator 15 Filter-drier (optional)
SAFETY DEVICES
High pressure switch
Transducer
Water differential pressure switch
Note : Each unit has 2 refrigerant circuits. For reasons of readability, one circuit only is shown.
Note : Each unit has 2 refrigerant circuits. For reasons of readability, one circuit only is shown.
