Page 38

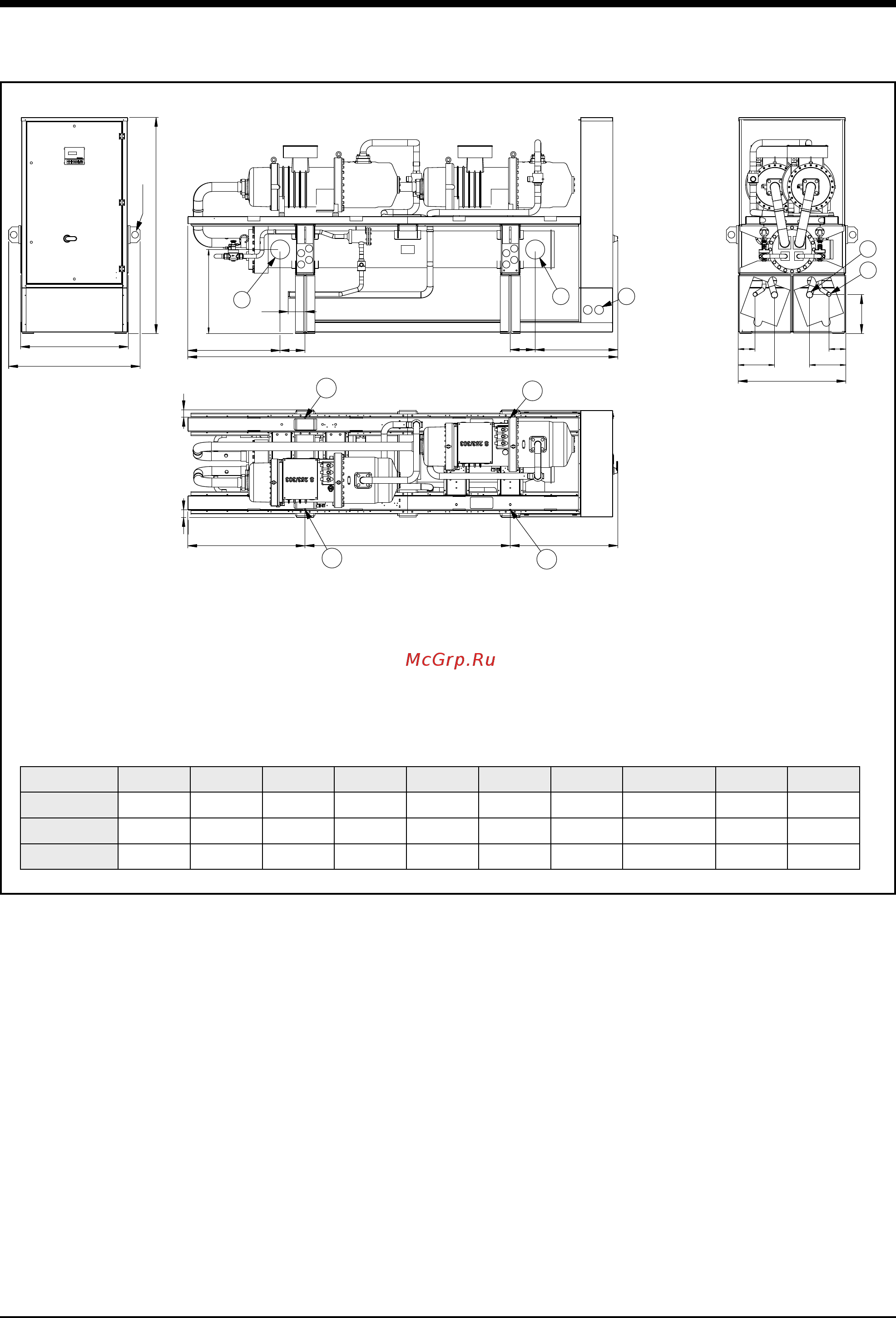

Dimensions (in mm) (cont'd)
SWR STD Frame 1
Legend :
* For shipping only
1 Evaporator water inlet
2 Evaporator water outlet
3 Discharge line connection
4 Liquid line connection
5 Power supply cable entry
P1, P2, P3 and P4 : vibration isolator fixing points
Dimensions A B C D E F G 1-2 3 4
1002-1202 800 235 715 230 320 340 150 DN125 (5") 1 5/8" 1 3/8"
1402-1602 800 235 715 230 320 340 150 DN125 (5") 1 5/8" 1 3/8"
1902 815 220 730 150 320 340 150 DN150 (6") 2 1/8" 1 3/8"
