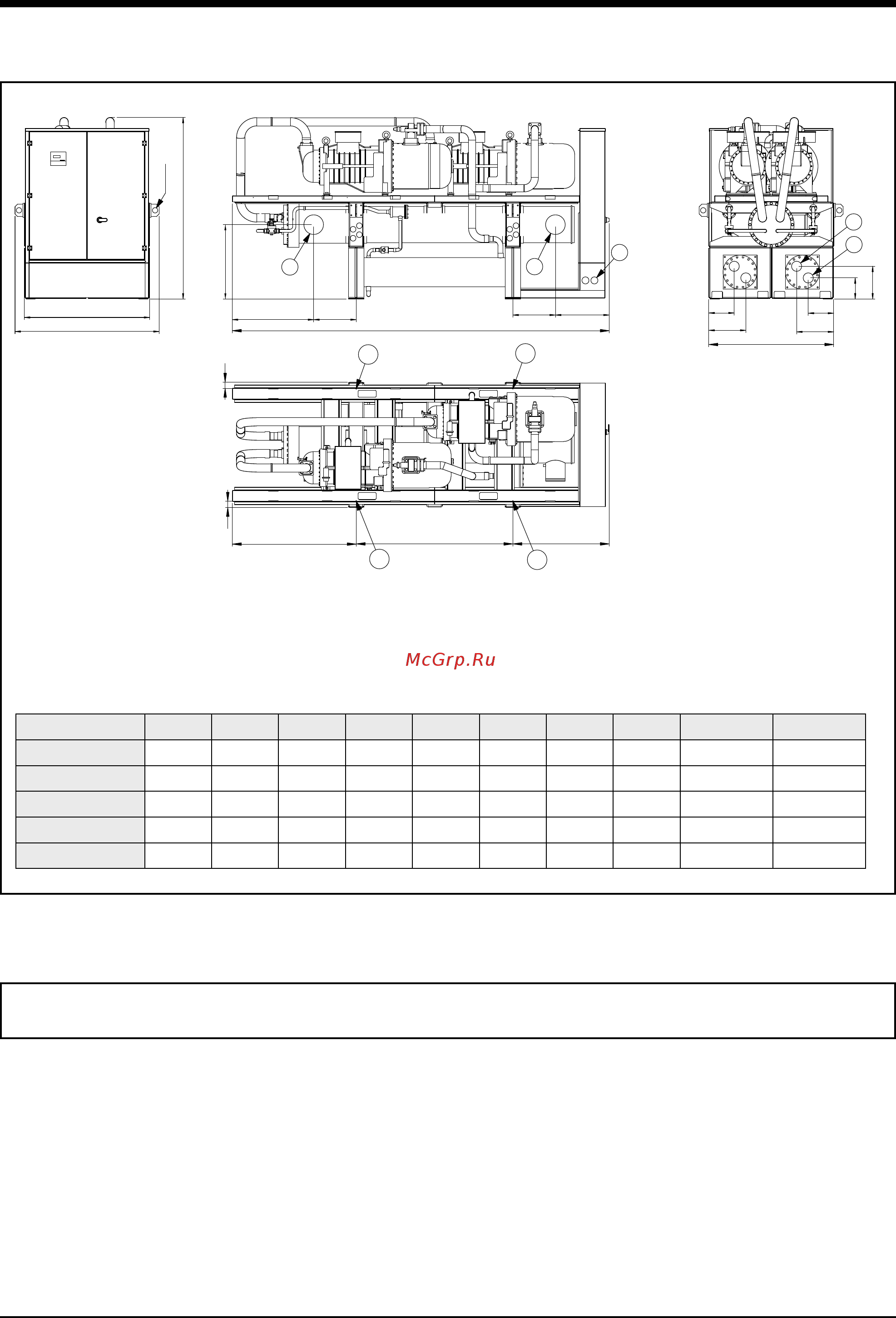

Page 39
SWS STD Frame 2
Dimensions (in mm) (cont'd)
Legend :
* For shipping only
1 Evaporator water inlet
2 Evaporator water outlet
3 Condenser water inlet
4 Condenser water outlet
5 Power supply cable entry
P1, P2, P3 and P4 : vibrator isolator fixing points
Dimensions A B C D E F G H 1-2 3-4
2202 1160 225 850 295 400 245 355 225 DN200 (8") 3" GAS F
2602-3002-3402 1160 225 850 295 400 245 355 225 DN200 (8") 3" GAS F
3802-4202-4402 910 475 600 285 415 235 355 475 DN200 (8") 4" GAS F
2212-2352-2502 1176 208 835 295 405 245 355 208 DN150 (6") 3" GAS F
2652-2802-3012 923 460 587 295 405 245 355 490 DN150 (6") 3" GAS F
SWR STD Frame 2
Data available during unit manufacturing. For external dimensions, please refer to SWS STD Frame 2 dimensions.
