TL-MR3020 Portable 3G/4G Wireless N Router

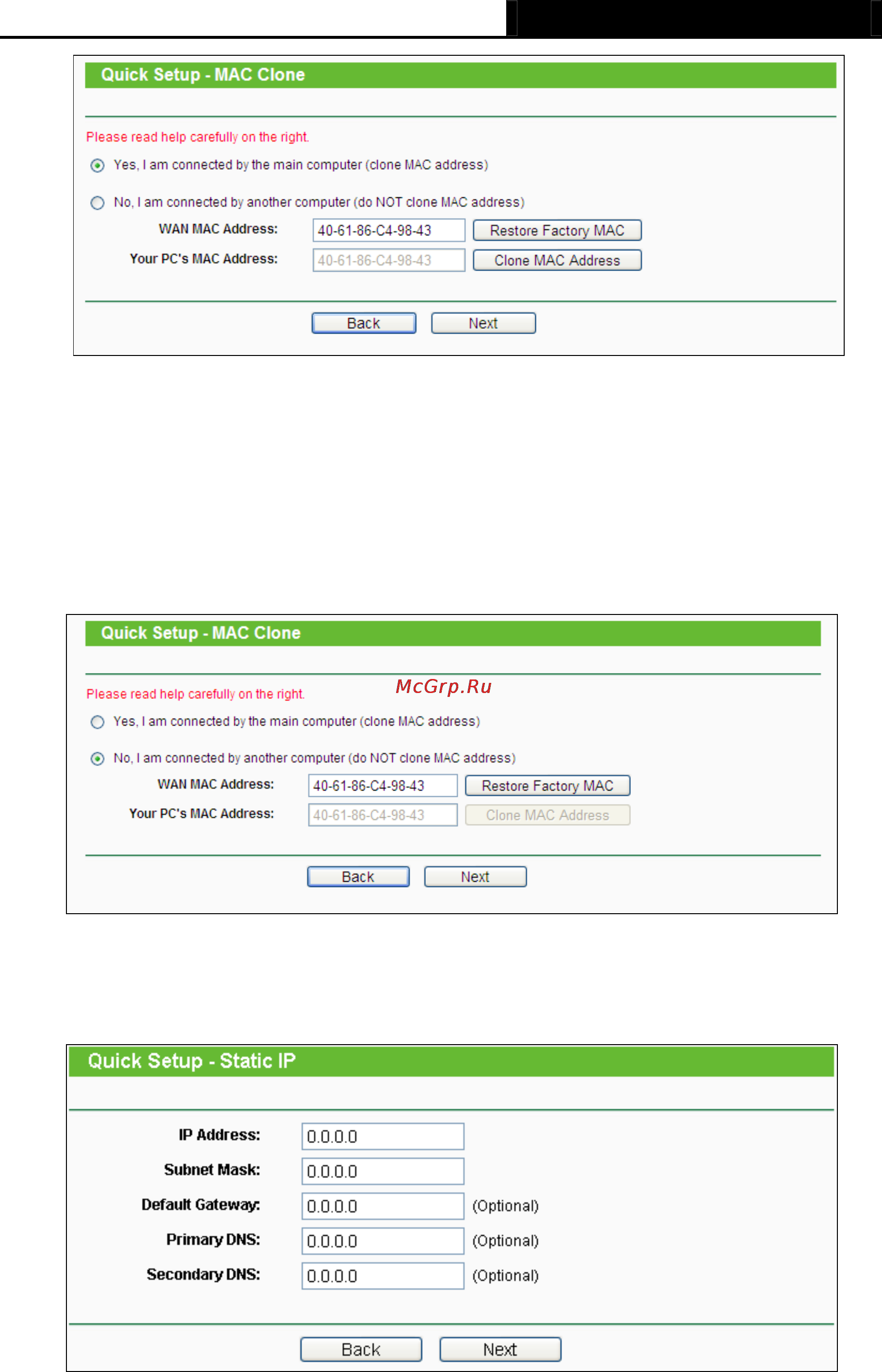

Figure 3-14 Quick Setup – MAC Clone
If you are visiting the Router from the main computer, please select Yes, and then
click Clone MAC Address.
If you are visiting the Router from another computer, rather than the main
computer, please select No, and then enter the main computer’s MAC in the field
WAN MAC Address.
Figure 3-15 Quick Setup – MAC Clone
If the connection type detected is Static IP, the next screen will appear as shown in
Figure 3-16.
Figure 3-16 Quick Setup - Static IP
-17-
