18D-Link DIR-412 User Manual
Section 3 - Configuration
Internet Connection Setup Wizard (WAN Mode)

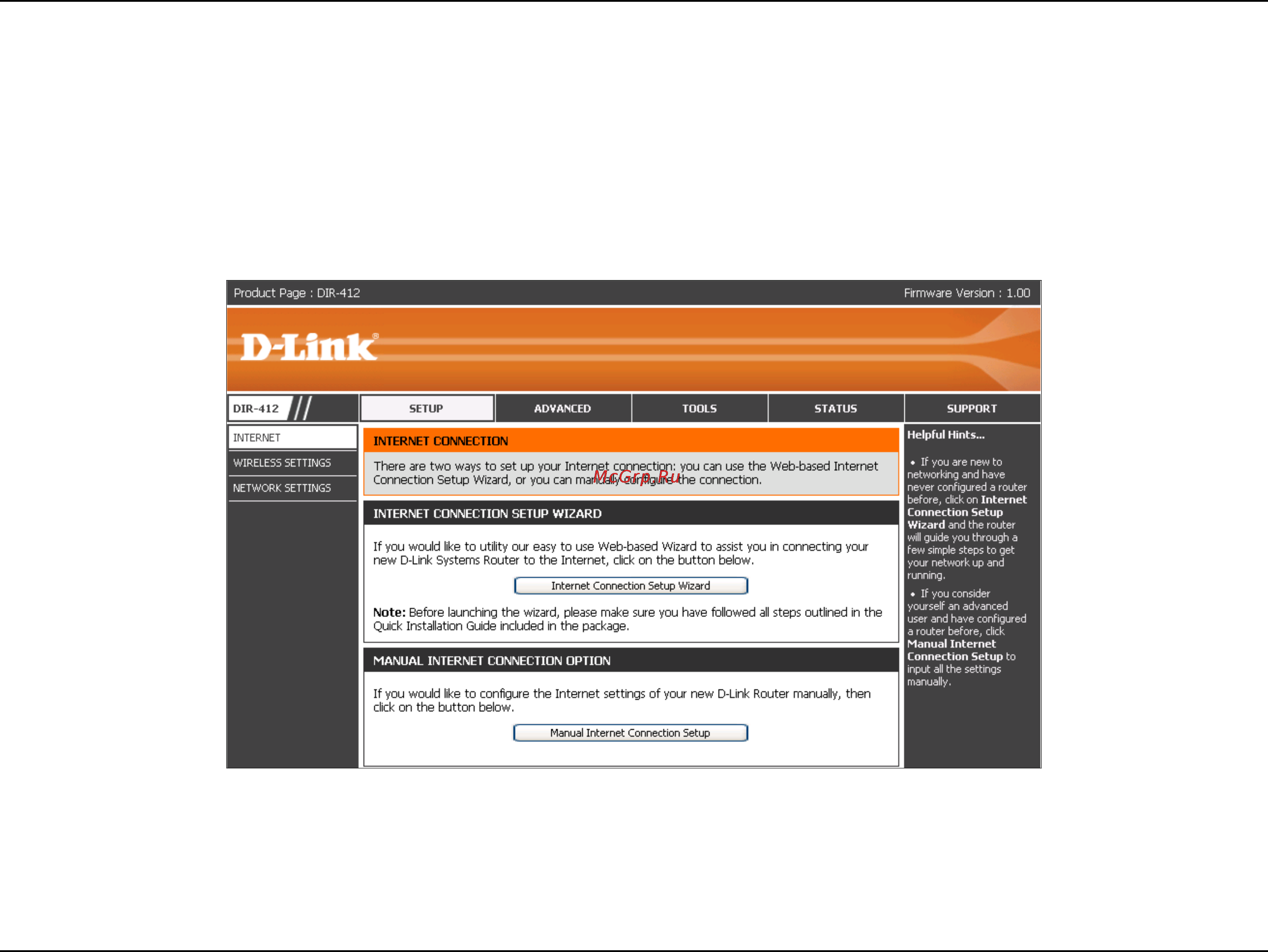

Once logged into the web interface of the router, the Setup > Internet page will appear. Click the Internet Connection
Setup Wizard button to quickly congure your router using the setup wizard.
If you want to enter your settings without running the wizard, click Manual Internet Connection Setup and skip to
“Manual Conguration (WAN Mode)” on page .
