D-Link DIR-412 [67/101] Schedules

63D-Link DIR-412 User Manual

Section 3 - Conﬁguration

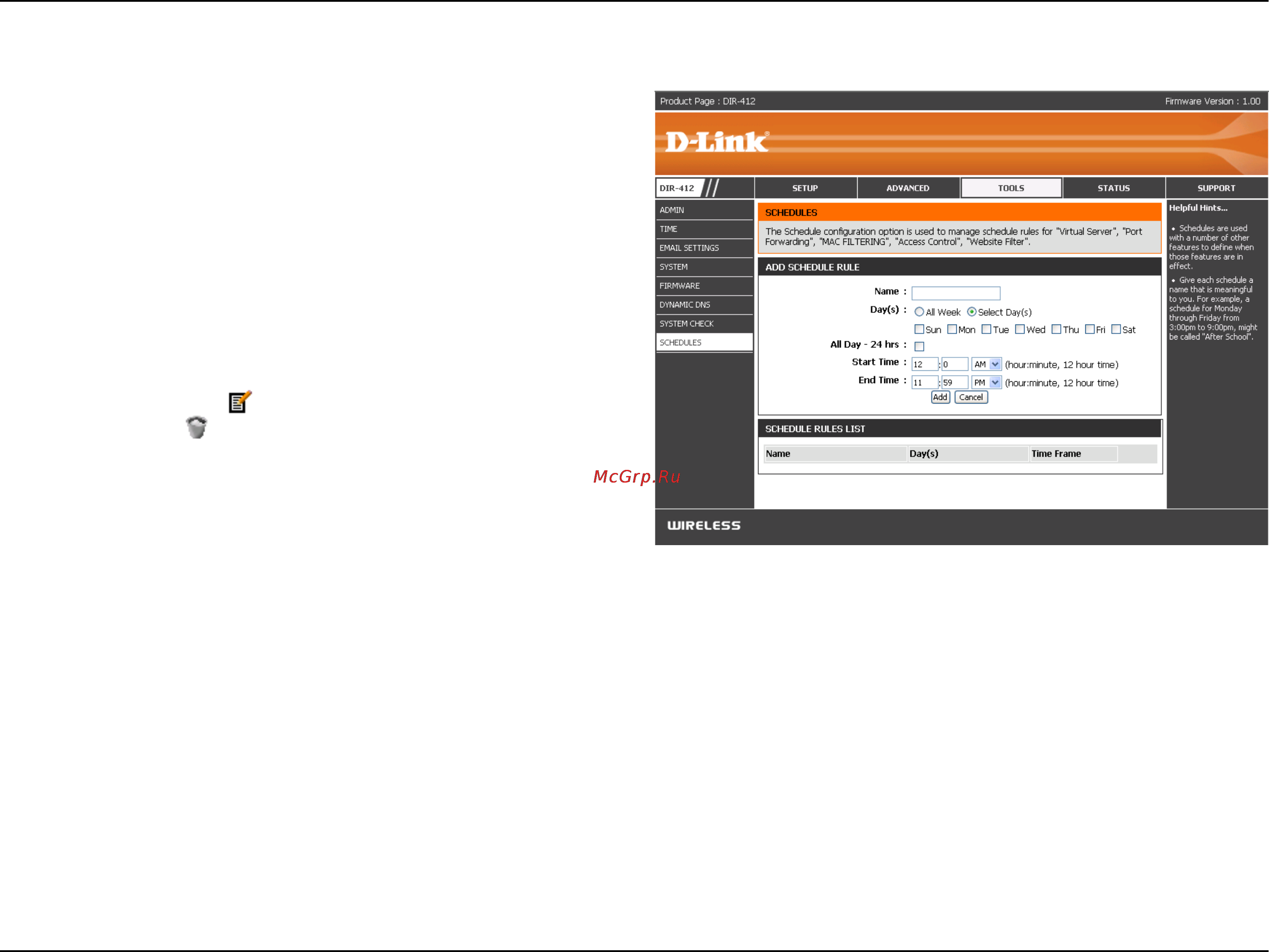

Enter a name for your new schedule.

Select a day, a range of days, or All Week to

include every day.

Check All Day - 24hrs or use the Start Time and

End Time elds to specify the start and end time

for your schedule.

Click Add to add your schedule.

The list of schedules will be listed here. Click the

Edit icon to make changes or click the Delete

icon to remove the schedule.

Name:

Days:

Time:

Add:

Schedule Rules

List:

Schedules
