48D-Link DIR-412 User Manual
Section 3 - Configuration

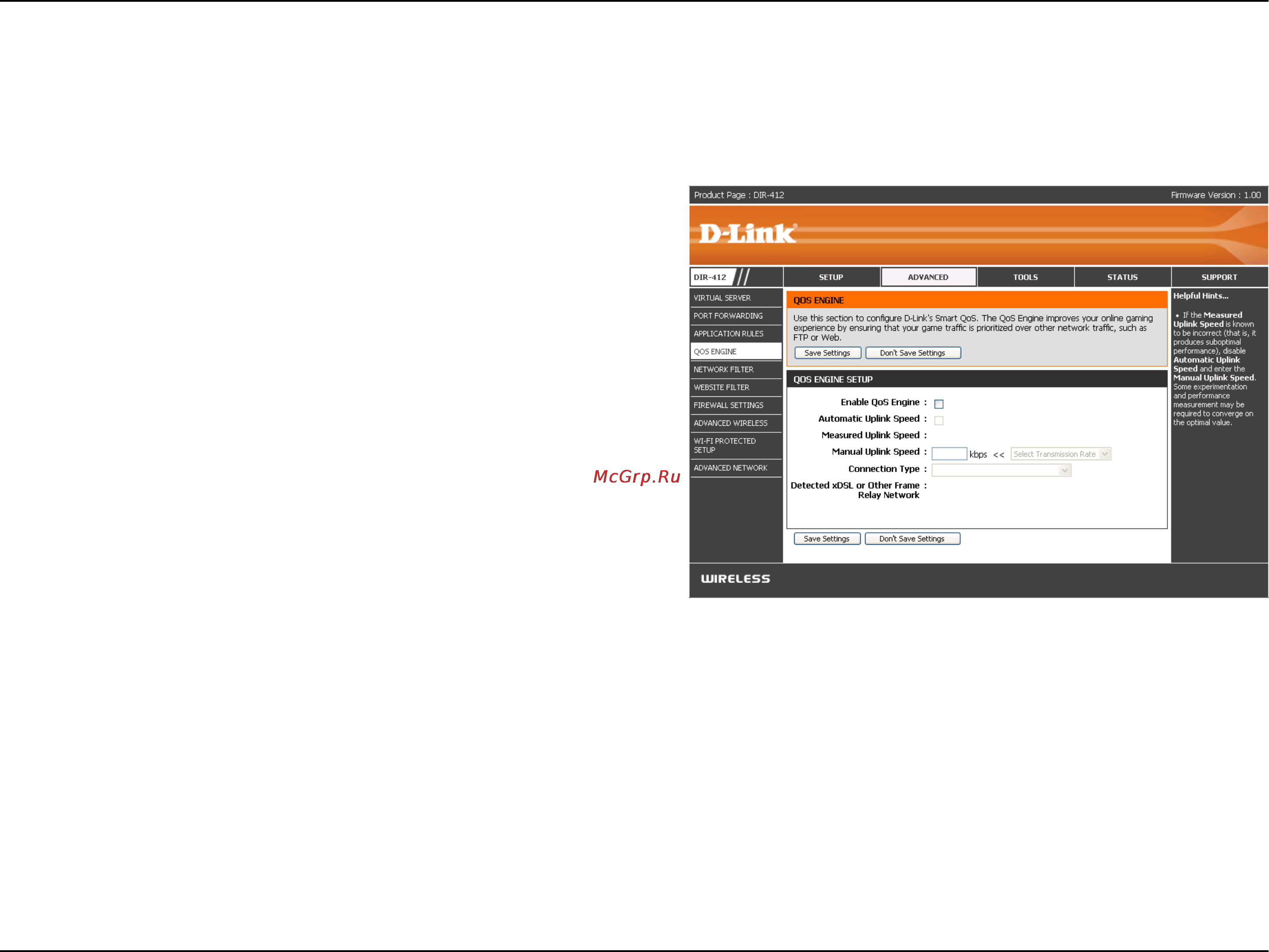

QoS Engine
This option is disabled by default. Enable this option for
better performance and experience with online games
and other interactive applications, such as VoIP.
This option will allow your router to automatically determine
the uplink speed of your Internet connection.
This displays the detected uplink speed.
The speed at which data can be transferred from the
router to your ISP. This is determined by your ISP. ISP’s
offer speed as a download/upload pair. For example,
1.5Mbits/284Kbits. Using this example, you would enter
284. Alternatively you can test your uplink speed with a
service such as www.dslreports.com.
This option allows you to select your connection type. Users can select “auto-detect” or choose the xDSL or cable networks
if they know.
This displays if xDSL or another type of frame relay network has been detected. The DIR-412 can detect the network and
the user can conrm this.
Enable QoS Engine:
Automatic Uplink
Speed:
Measured Uplink
Speed:
Manual Uplink
Speed:
Connection Type:
Detected xDSL or
Other Frame Relay
Network:
The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the
QoS Engine settings are disabled and application priority is not classied automatically.
