55D-Link DIR-412 User Manual
Section 3 - Configuration
UPnP
Internet Ping Block
Internet Port Speed
Multicast Streams
To use the Universal Plug and Play (UPnP
™
) feature
check the Enable UPNP box. UPNP provides
compatibility with networking equipment, software
and peripherals.
Unchecking the box will not allow the DIR-412 to
respond to pings. Blocking the Ping may provide some
extra security from hackers. Check the box to allow
the Internet port to be “pinged”.
You may set the port speed of the Internet port to
10Mbps, 100Mbps, or auto. Some older cable or
DSL modems may require you to set the port speed
to 10Mbps.
Check the Enable Multicast Streams box to allow
multicast trafc to pass through the router from the
Internet.
Check the Wireless Enhance Mode box to enable
the router to forward all multicast streams from the
Internet to the wireless station using a unicast stream.
This feature helps improve the quality of multimedia
applications for wireless users.
UPnP:
WAN Ping:
WAN Port Speed:
Multicast
Streams:

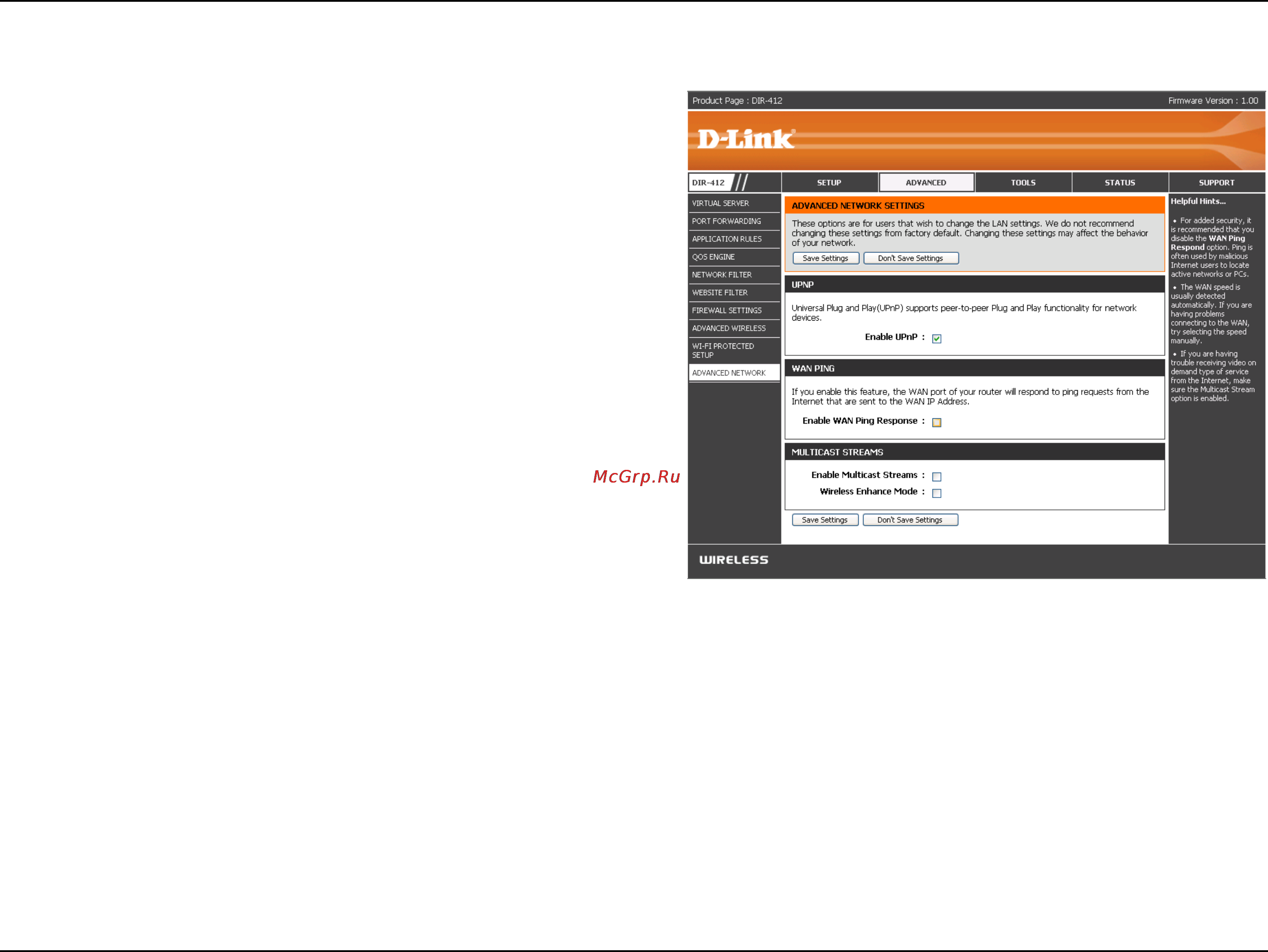

Advanced Network Settings
