34D-Link DIR-412 User Manual
Section 3 - Configuration

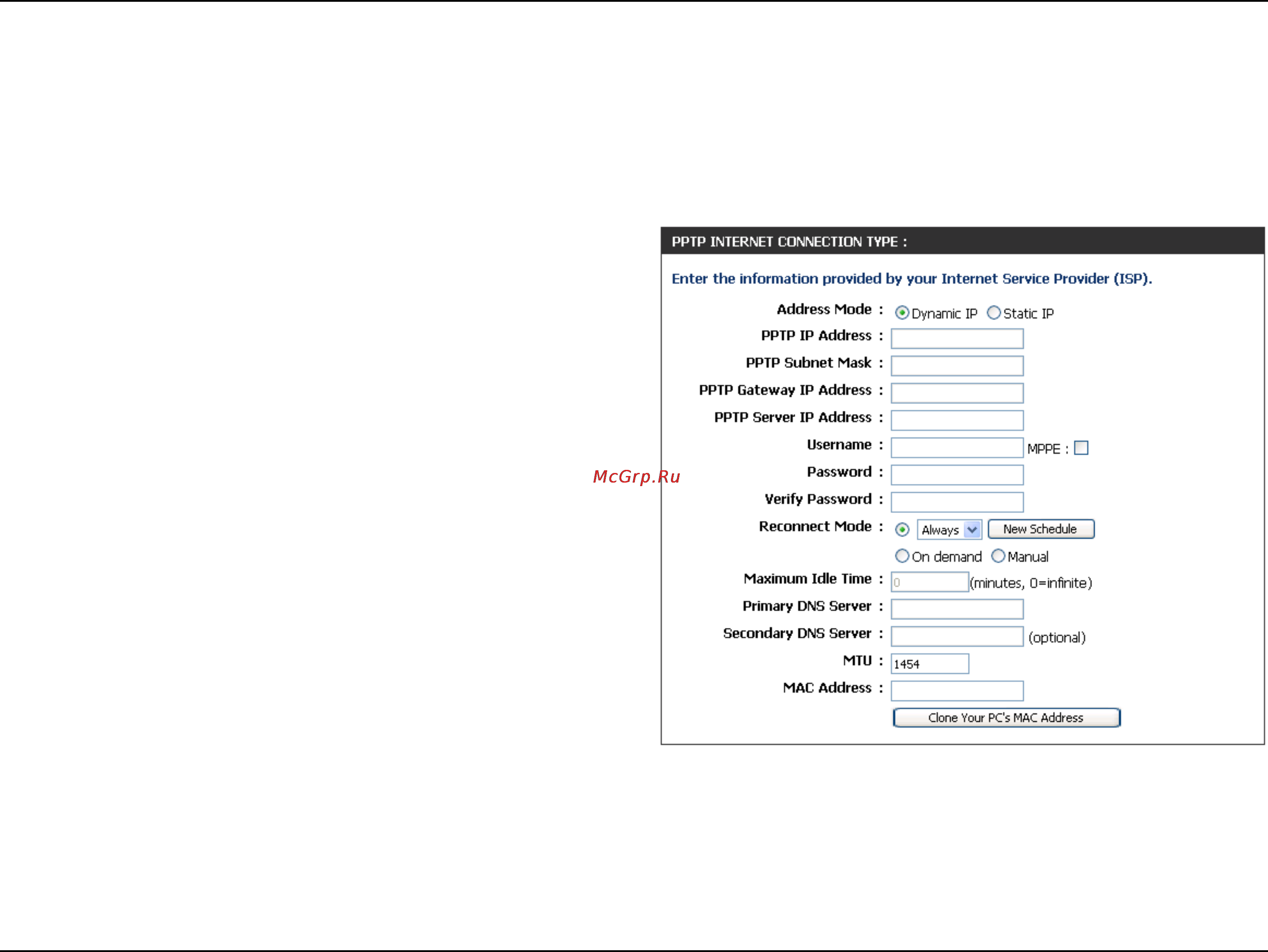

Choose Russia PPTP (Dual Access) from the My Internet Connection is drop-down menu if your ISP uses a PPTP
connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.
Select Static IP if your ISP assigned you
the IP address, subnet mask, gateway, and
DNS server addresses. In most cases, select
Dynamic IP.
Enter the IP address (Static PPTP only).
Enter the Subnet Mask (Static PPTP only).
Enter the Gateway IP address provided by your
ISP (Static PPTP only).
Enter the Server IP provided by your ISP
(optional).
Enter your PPTP username. Check the MPPE
box to enable the MPPE encryption protocol
between the DIR-412 and PPTP server.
Enter your PPTP password and then retype the
password in the next box.
Select either Always-on, On-Demand, or
Manual.
Address Mode:
PPTP IP Address:
PPTP Subnet
Mask:
PPTP Gateway IP
Address:
PPTP Server IP
Address:
Username:
Password:
Reconnect Mode:
Manual Configuration (WAN Mode)
Russia PPTP (Dual Access)
