62D-Link DIR-412 User Manual
Section 3 - Configuration

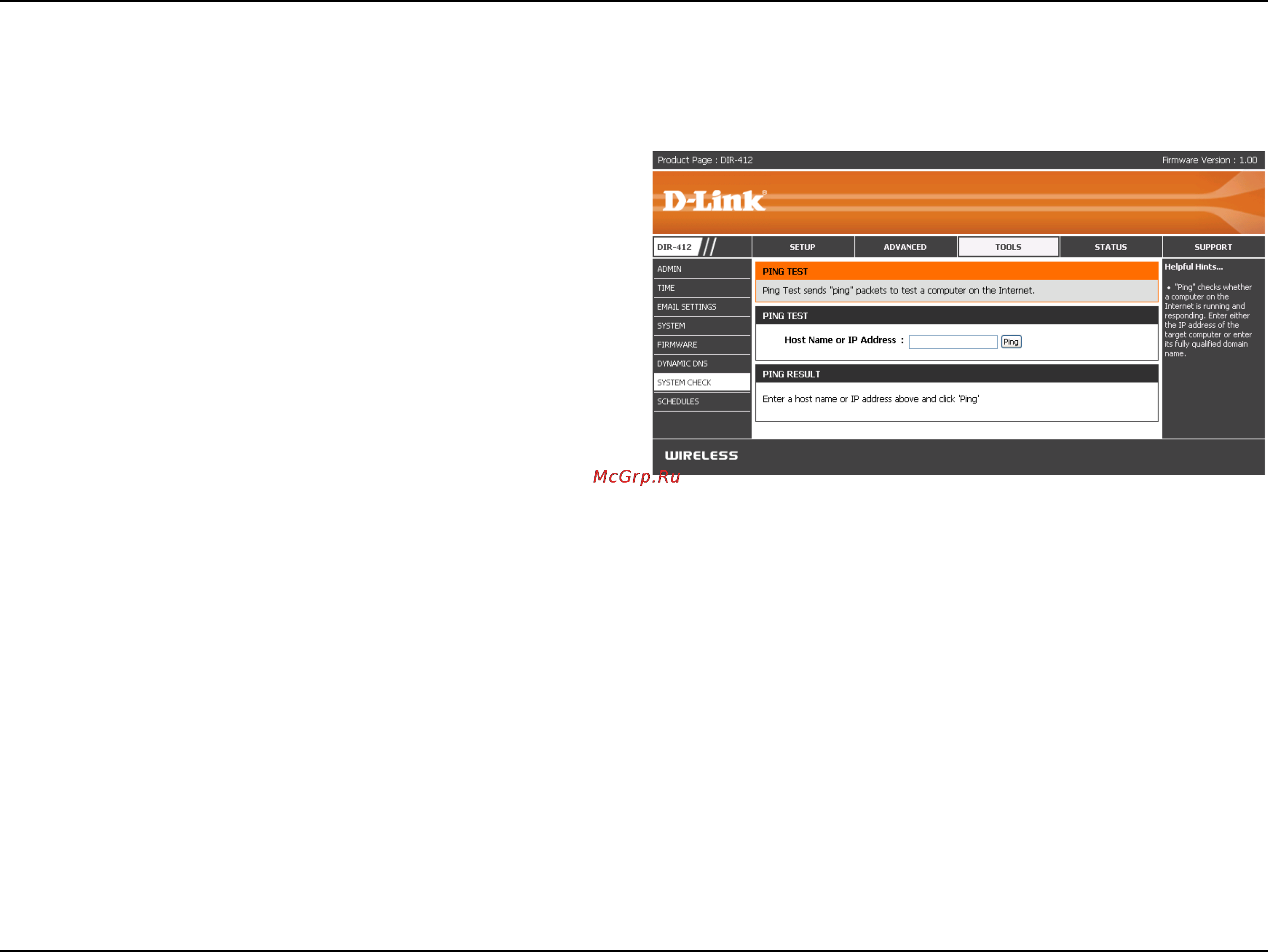

The Ping Test is used to send Ping packets to test if
a computer is on the Internet. Enter the IP Address
that you wish to Ping, and click Ping.
The results of your ping attempts will be displayed
here.
Ping Test:
Ping Results:
The System Check feature allows you to verify the physical connectivity on both the LAN and Internet interface.
System Check
