26D-Link DIR-412 User Manual
Section 3 - Configuration
Enter the IP address assigned by your ISP.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
Enter the Primary and Secondary DNS server
IP addresses assigned by your ISP.
Maximum Transmission Unit - You may need to
change the MTU for optimal performance with
your specic ISP. 1500 is the default MTU.
The default MAC Address is set to the Internet
port’s physical interface MAC address on the
Broadband Router. It is not recommended that
you change the default MAC address unless
required by your ISP. You can use the Clone
Your PC’s MAC Address button to replace
the Internet port’s MAC address with the MAC
address of your Ethernet card.
IP Address:
Subnet Mask:
Default Gateway:
DNS Servers:
MTU:
MAC Address:

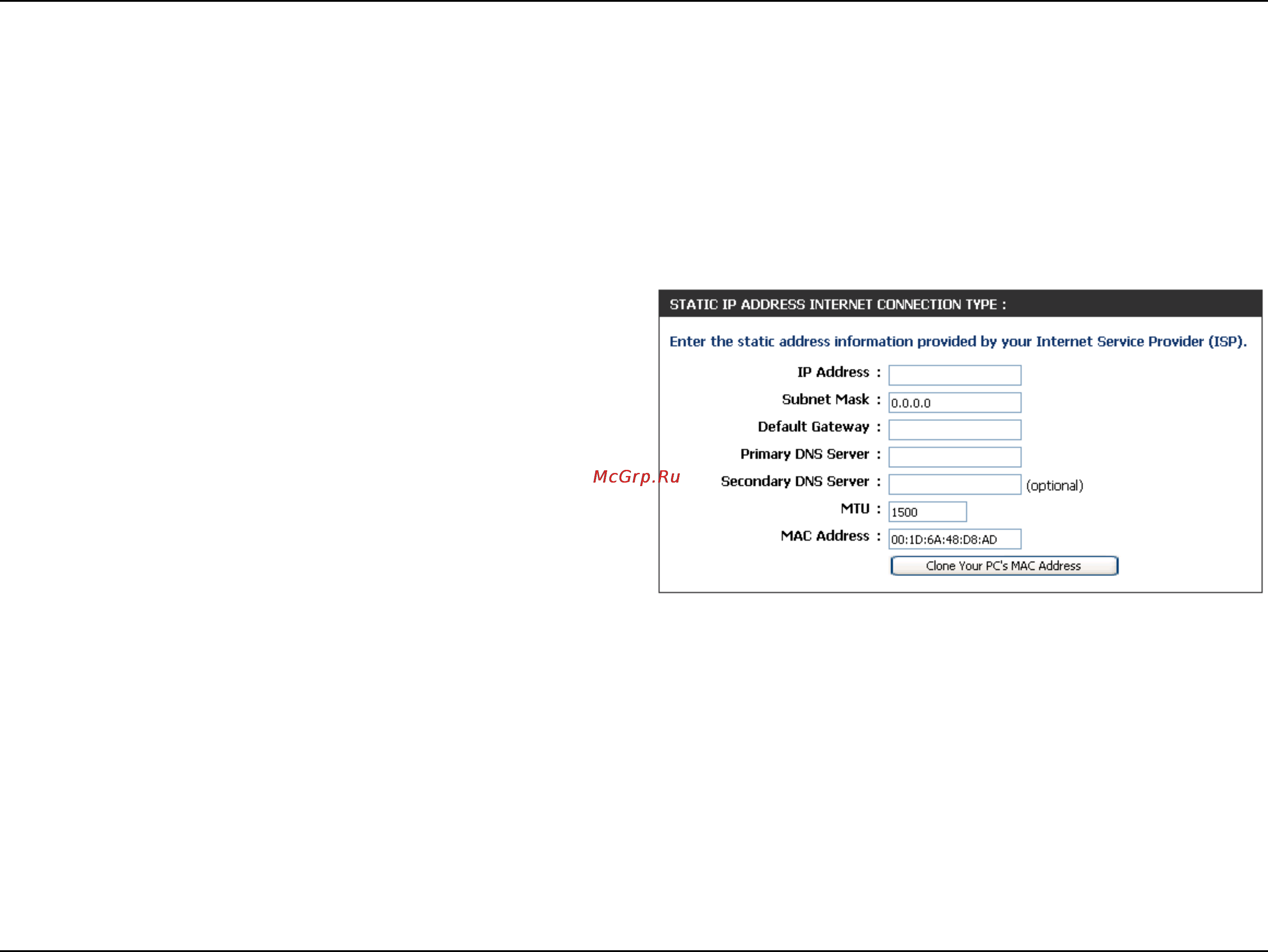

Choose Static IP (DHCP) from the My Internet Connection is drop-down menu if all the Internet port’s IP information
is provided to you by your ISP. You will need to enter in the IP address, subnet mask, gateway address, and DNS
address(es) provided to you by your ISP. Each IP address entered in the elds must be in the appropriate IP form,
which are four octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.
Manual Configuration (WAN Mode)Manual Configuration (WAN Mode)
Static IP Address
