D-Link DIR-412 [70/101] Statistics
![D-Link DIR-412 [70/101] Statistics](/views2/1044198/page70/bg46.png)
66D-Link DIR-412 User Manual
Section 3 - Configuration
Statistics

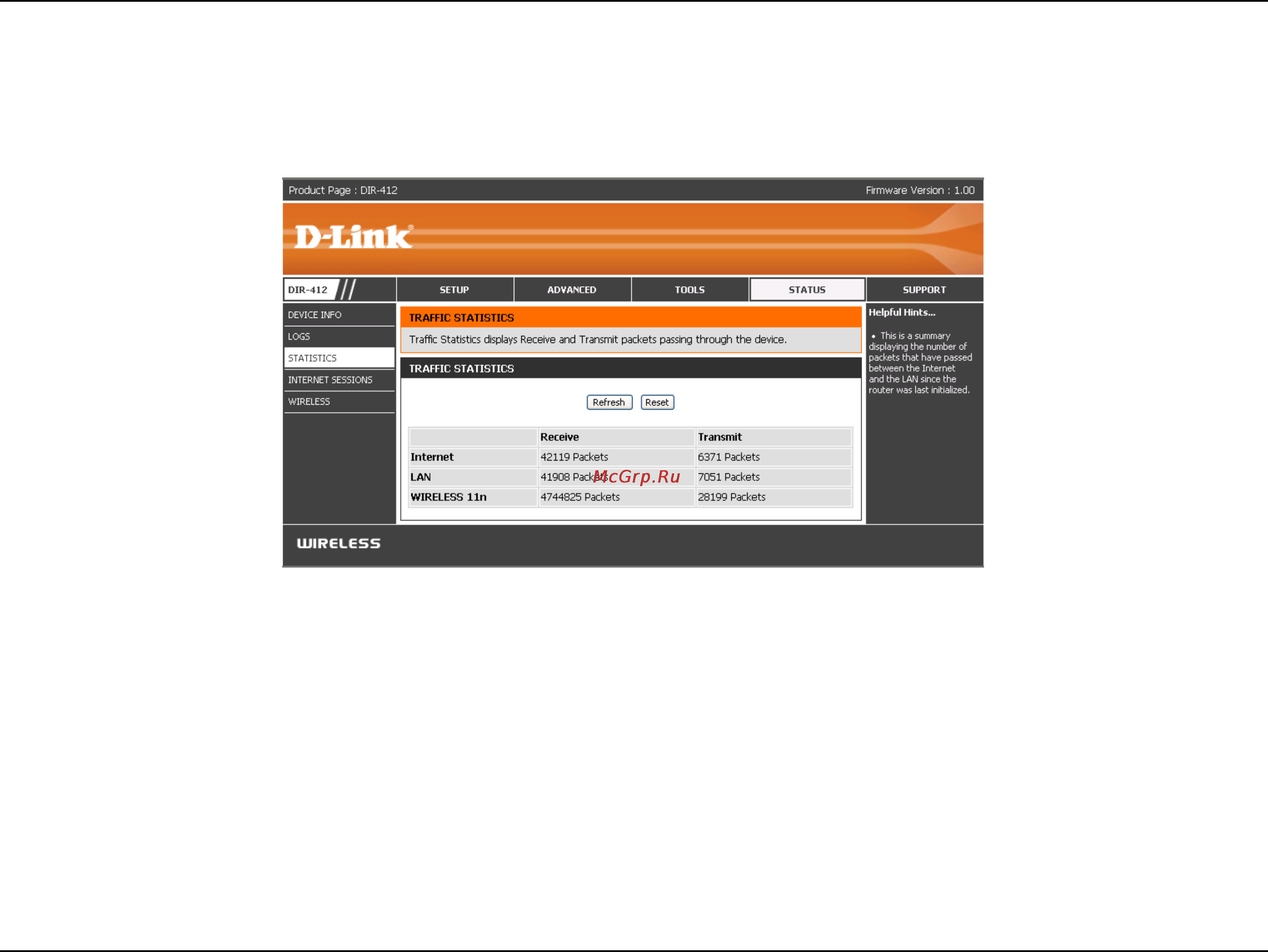

The screen below displays the Trafc Statistics. Here you can view the amount of packets that pass through the DIR-412
on the Internet, LAN and Wireless connections. The trafc counter will reset if the device is rebooted.
