36D-Link DIR-412 User Manual
Section 3 - Configuration
Choose Russia PPoE (Dual Access) from the My Internet Connection is drop-down menu if your ISP uses a PPPoE
connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnect
Mode:
Maximum Idle
Time:

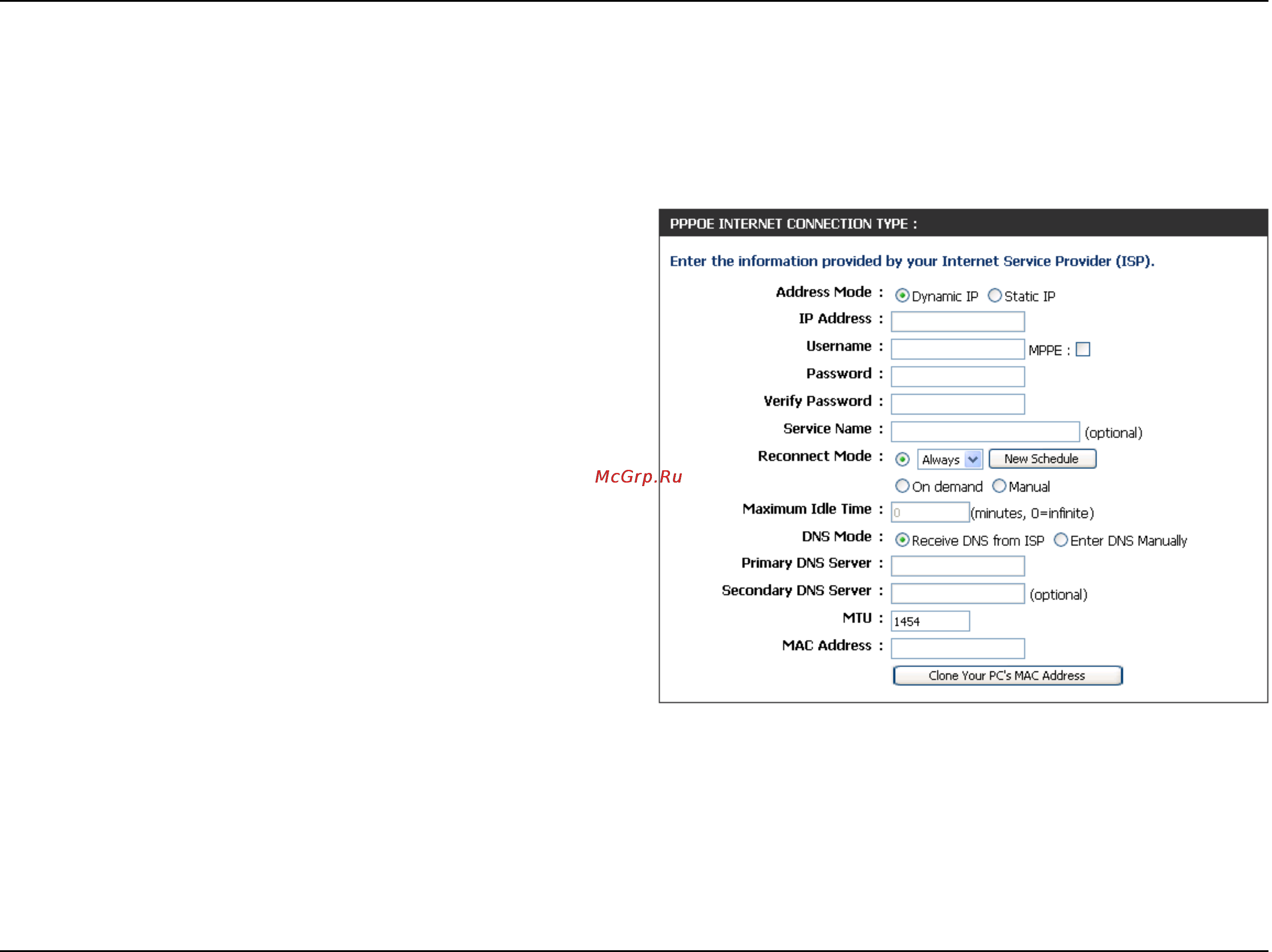

Manual Configuration (WAN Mode)
Russia PPPoE (Dual Access)
Select Static if your ISP assigned you the IP
address, subnet mask, gateway, and DNS
server addresses. In most cases, select
Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name. Check the MPPE
box to enable the MPPE encryption protocol
between the DIR-412 and PPPoE server.
Enter your PPPoE password and then retype
the password in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or
Manual.
Enter a maximum idle time during which the
Internet connection is maintained during
inactivity. To disable this feature, enable
Auto-reconnect.
