17D-Link DIR-412 User Manual
Section 3 - Configuration
If you opt to set up your Internet connection manually, you will be redirected to a WAN page that allows you to congure
your 3G conguration parameters.

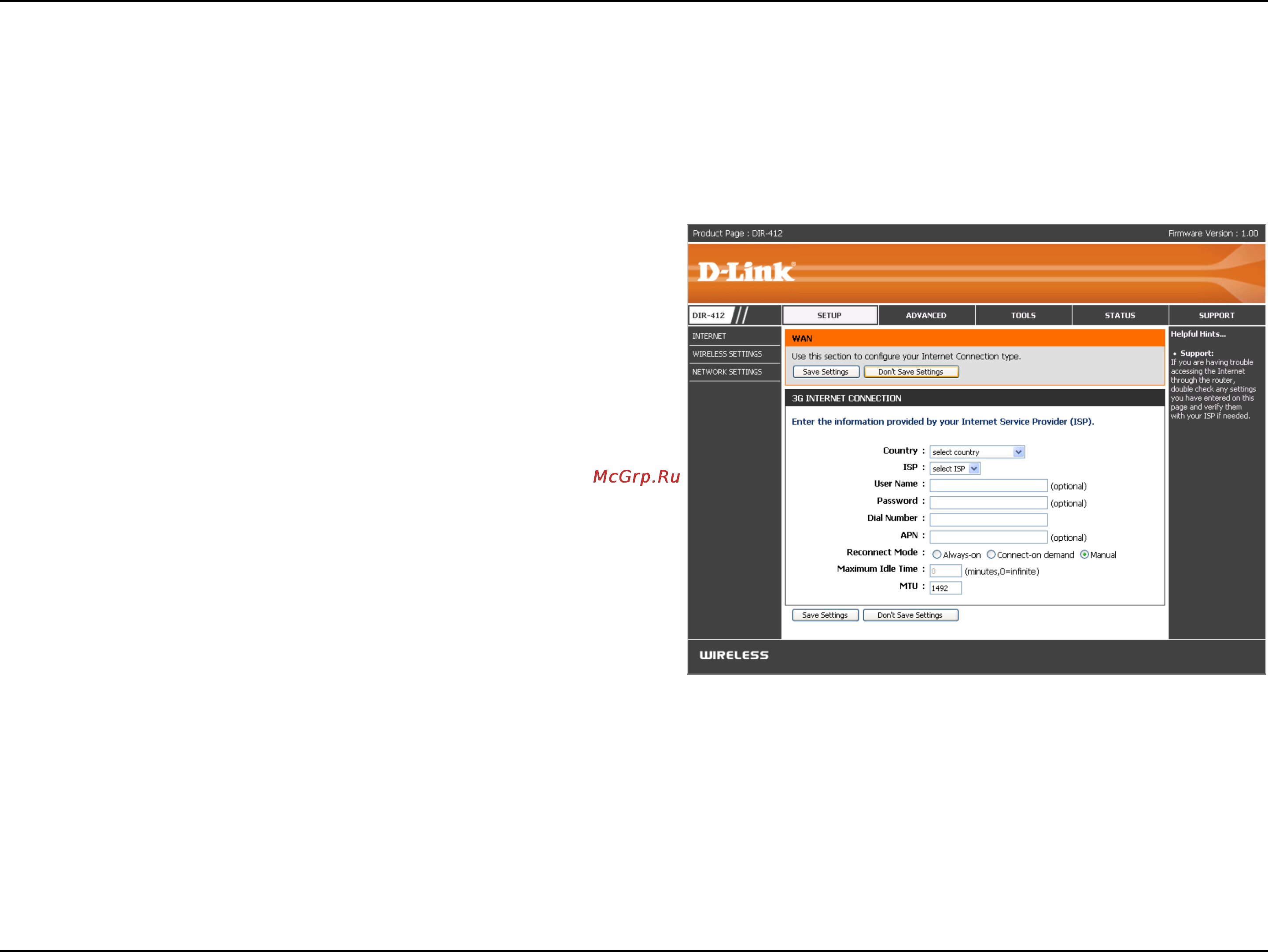

Manual Configuration (3G Mode)
3G Internet Connection
Select your country from the drop-down menu.
Select your Internet Service Provider (ISP) from the
drop-down menu.
Enter the user name for your 3G Internet connection.
Enter the password for your 3G Internet connection.
Enter the dial number for your 3G service provider.
Enter the Access Point Name (APN) for your 3G service
provider.
Click a radio button to choose a reconnection mode.
The options are Always-on, Connect on demand, or
Manual.
Enter the maximum amount of time the Internet connection
should be maintained during inactivity. To disable this
feature, enable the Always-on reconnect mode.
Maximum Transmission Unit. You may need to change the
MTU for optimal performance with your specic ISP. The
default is 1500.
Country:
ISP:
User Name:
Password:
Dial Number:
APN:
Reconnect
Mode:
Maximum
Idle Time:
MTU:
Click the Save Settings button when you have nished conguring the 3G connection.
