16D-Link DIR-412 User Manual

Section 3 - Conﬁguration

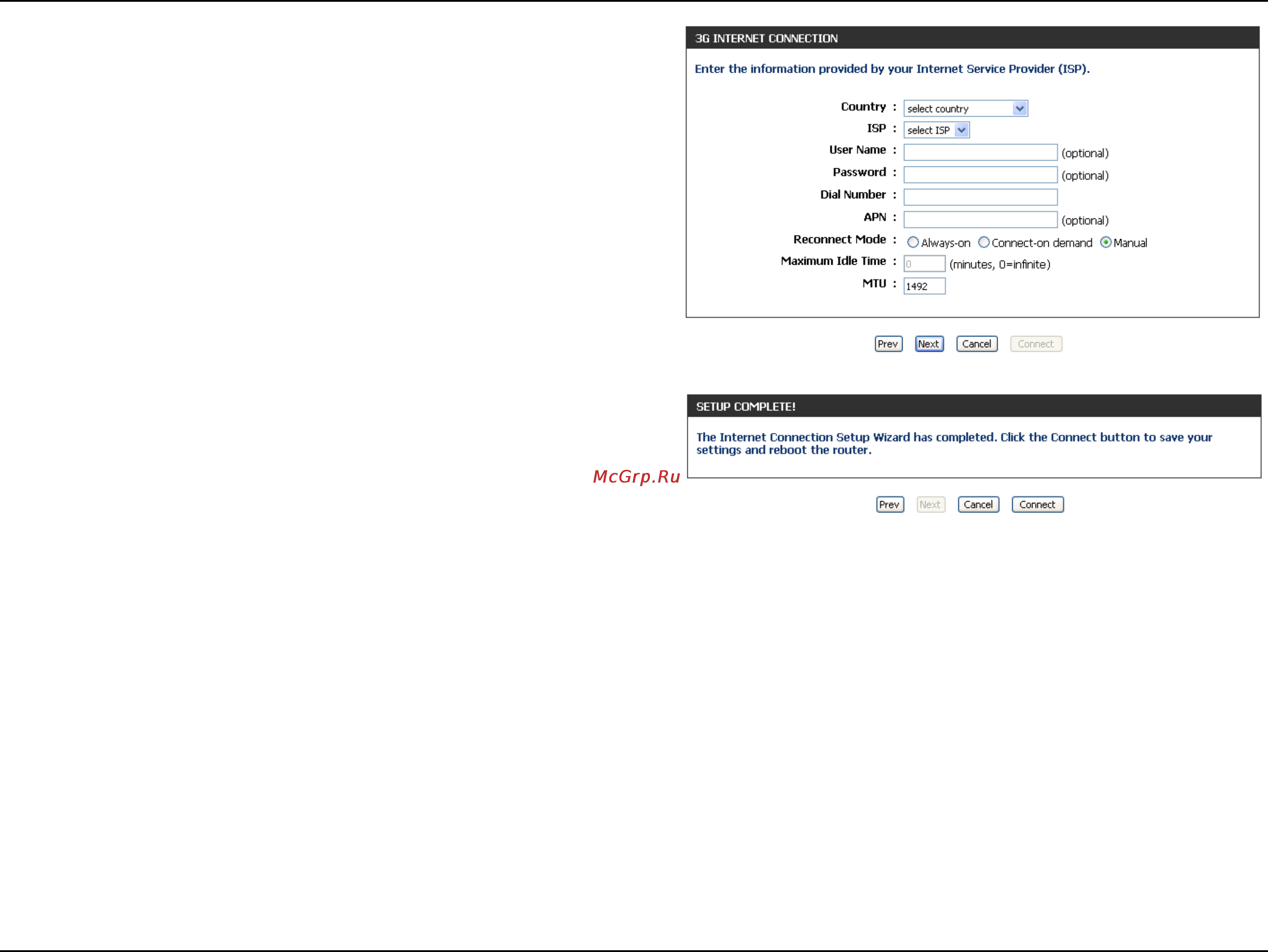

Congure your 3G Internet Connection settings and

then click Next to continue.

Click Connect to save your settings. Once the router

has nished rebooting, click Continue. Please allow

1-2 minutes to connect.
