38D-Link DIR-412 User Manual
Section 3 - Configuration

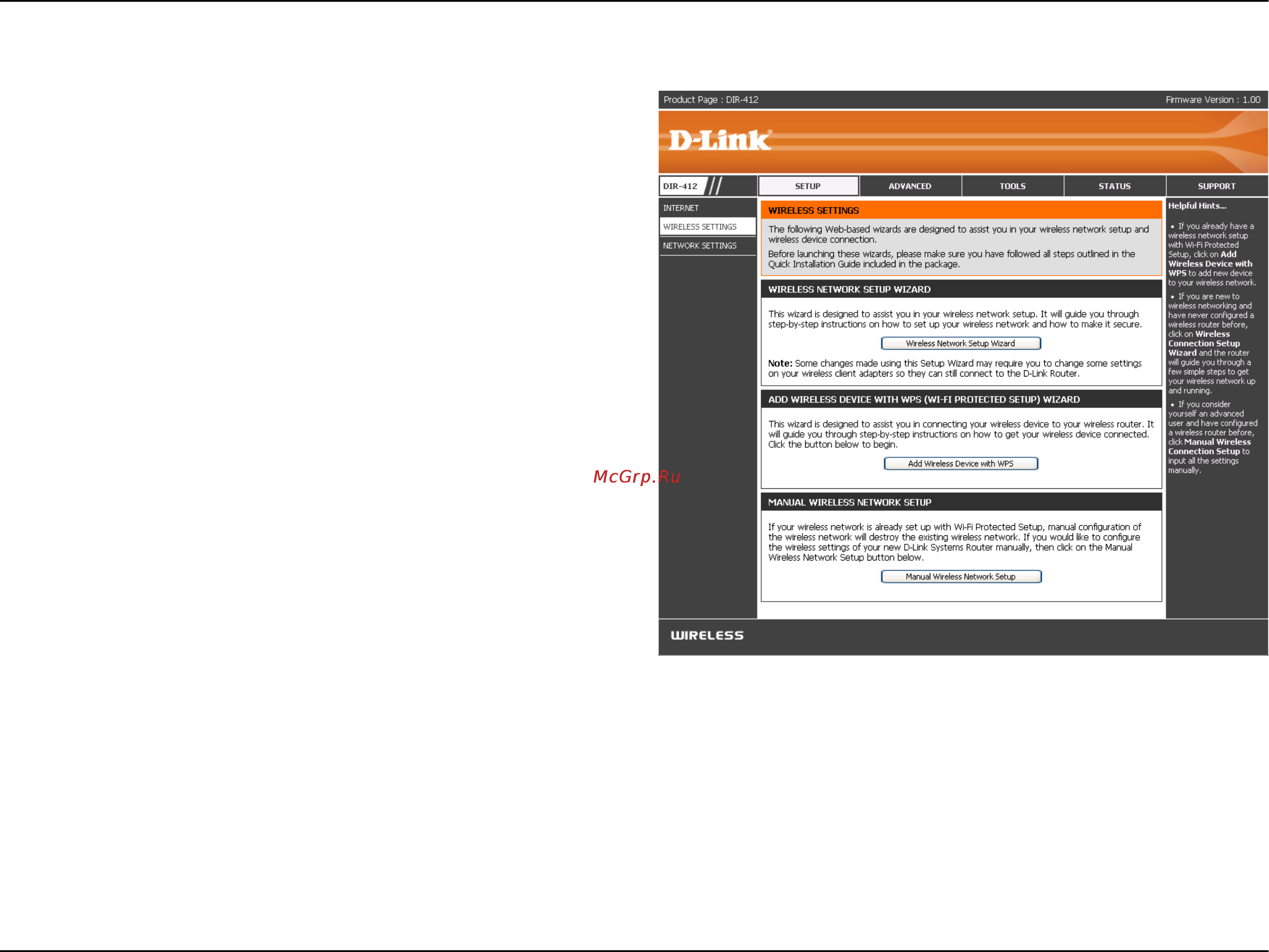

Wireless Settings
If you want to congure the wireless settings on your
router using the wizard, click Wireless Network Setup
Wizard and refer to “Wireless Connection Setup Wizard”
on page .
Click Add Wireless Device with WPS if you want to
add a wireless device using Wi-Fi Protected Setup
(WPS) and refer to “Add Wireless Device with WPS
Wizard” on page .
If you want to manually congure the wireless settings
on your router click Manual Wireless Network Setup
and refer to the next page.
