D-Link DIR-412 [75/101] Wireless connection setup wizard
![D-Link DIR-412 [75/101] Wireless connection setup wizard](/views2/1044198/page75/bg4b.png)
71D-Link DIR-412 User Manual
Section 4 - Security

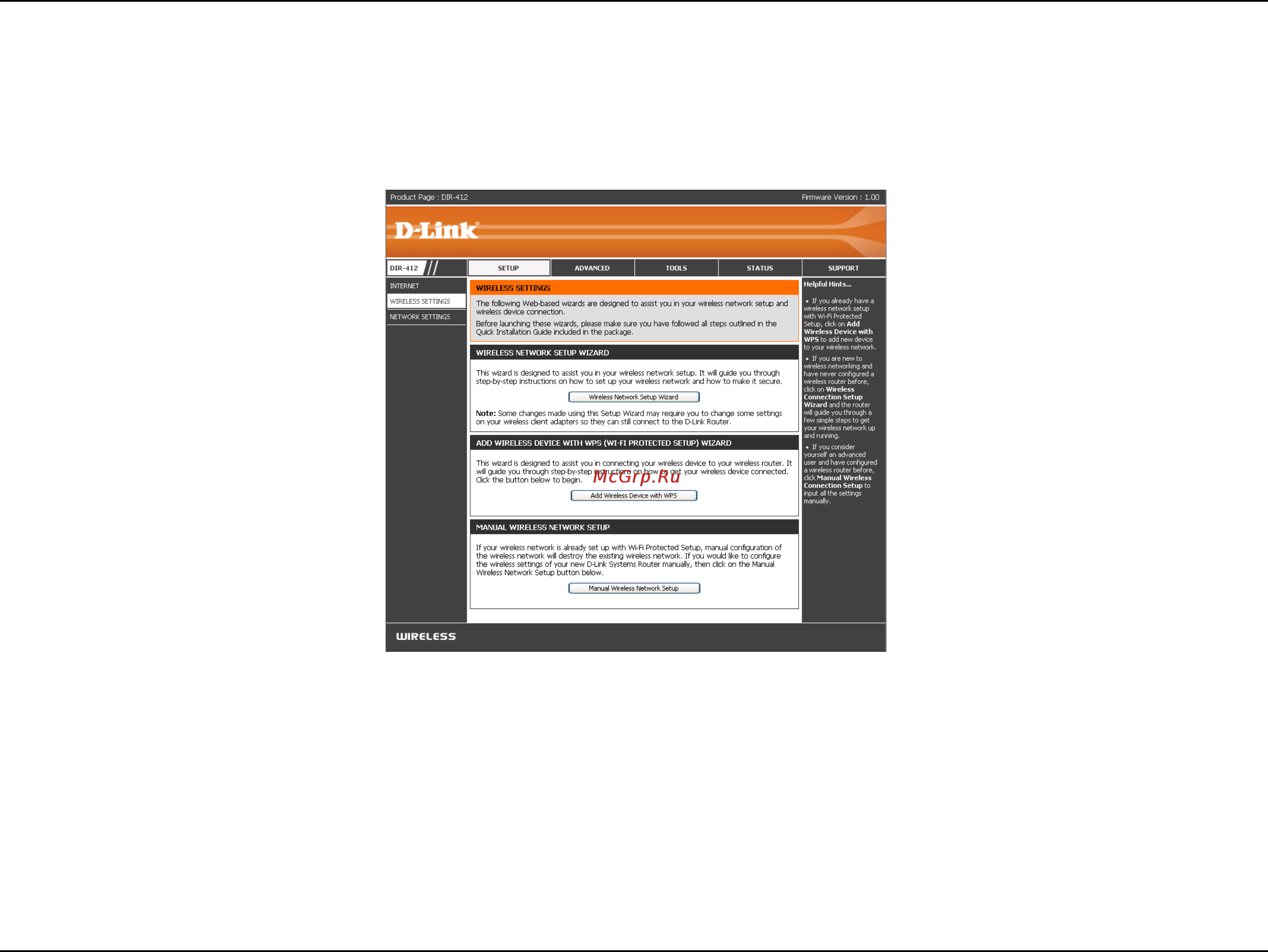

Wireless Connection Setup Wizard
To run the security wizard, browse to the Setup page and then click the Wireless Network Setup Wizard button.
