61D-Link DIR-412 User Manual
Section 3 - Configuration
Dynamic Domain Name System is a method of
keeping a domain name linked to a changing IP
Address. Check the box to enable DDNS.
Choose your DDNS provider from the drop down
menu.
Enter the Host Name that you registered with your
DDNS service provider.
Enter the User Name for your DDNS account.
Enter the Password for your DDNS account.
This is to test if the DDNS account is valid for use.
Enable DDNS:
Server Address:
Host Name:
User Account:
Password:
DDNS Account
Testing:
DDNS

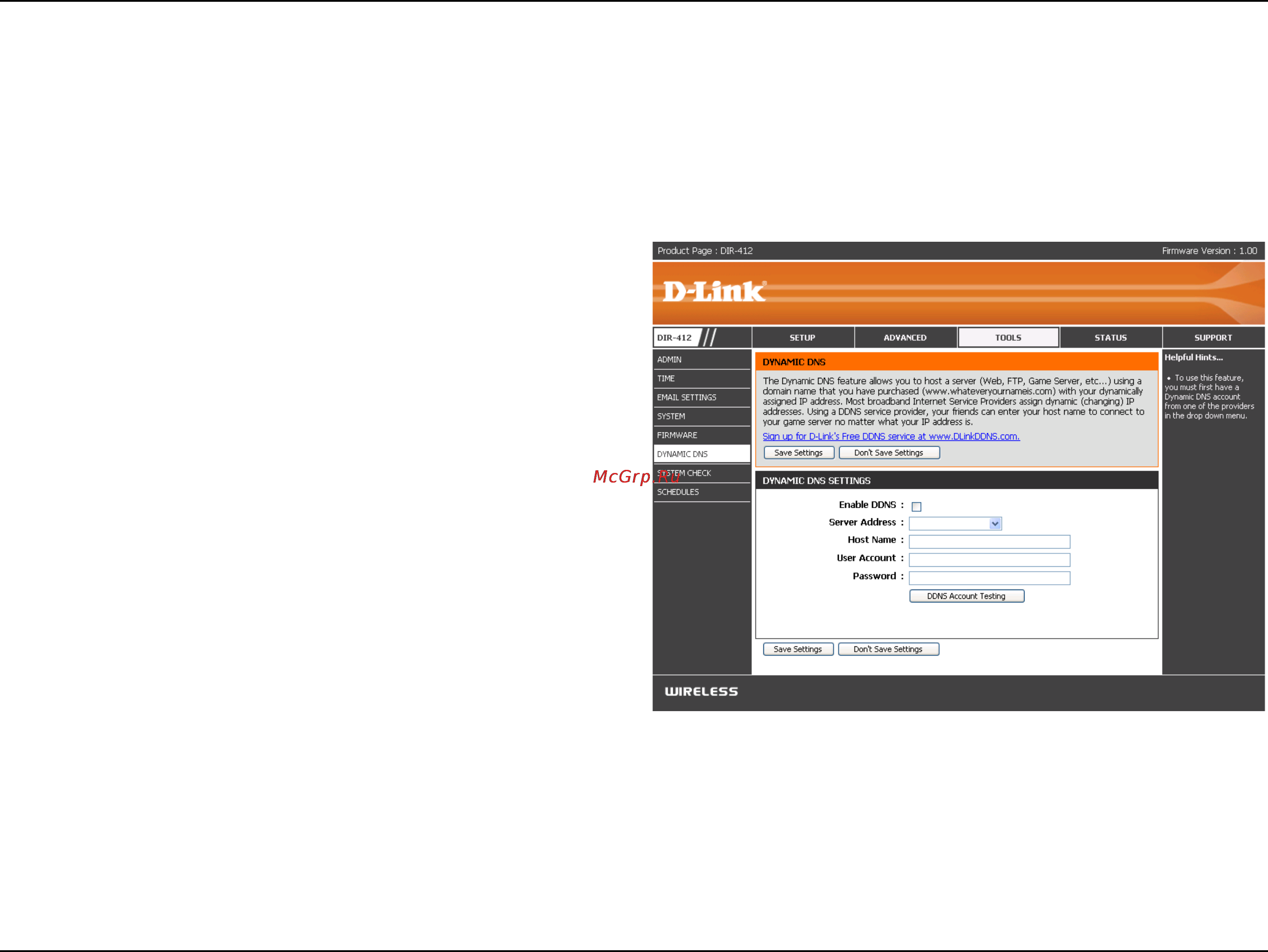

The DDNS feature allows you to host a server (Web, FTP, Game Server, etc…) using a domain name that you have
purchased (www.whateveryournameis.com) with your dynamically assigned IP address. Most broadband Internet
Service Providers assign dynamic (changing) IP addresses. Using a DDNS service provider, your friends can enter in
your domain name to connect to your server no matter what your IP address is.
