58D-Link DIR-412 User Manual
Section 3 - Configuration

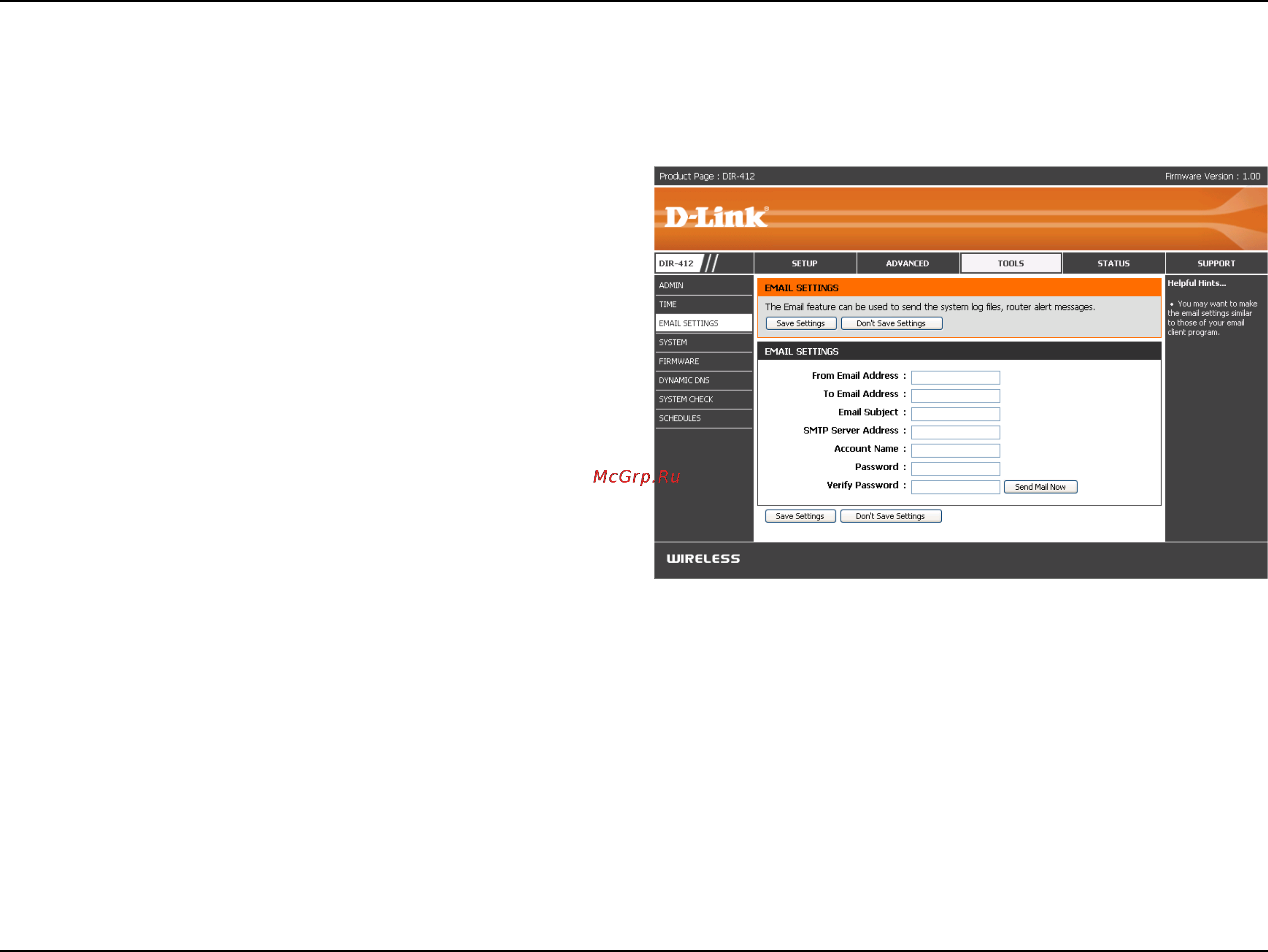

E-mail Settings
The E-mail feature can be used to send the system log les, router alert messages, and rmware update notication
to your e-mail address.
From E-mail
Address:
To E-mail Address:
E-mail Subject:
SMTP Server
Address:
Account Name:
Password:
Send Mail Now:
This e-mail address will appear as the sender when
you receive a log le or rmware upgrade notication
via e-mail.
Enter the e-mail address where you want the e-mail
sent.
Enter a subject for the e-mails that will be sent from
the Router.
Enter the IP address of the SMTP server for sending
e-mail.
Enter your account name for sending e-mail.
Enter the password associated with the account.
Re-type the password associated with the account in
the Verify Password eld.
Click the Send Mail Now button to send a test message
from the Router to the specied e-mail address.
