28D-Link DIR-412 User Manual
Section 3 - Configuration
Select Static if your ISP assigned you the IP
address, subnet mask, gateway, and DNS
server addresses. In most cases, select
Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype
the password in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or
Manual.
Enter a maximum idle time during which the
Internet connection is maintained during
inactivity. To disable this feature, enable Auto-
reconnect.
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnect
Mode:
Maximum Idle
Time:

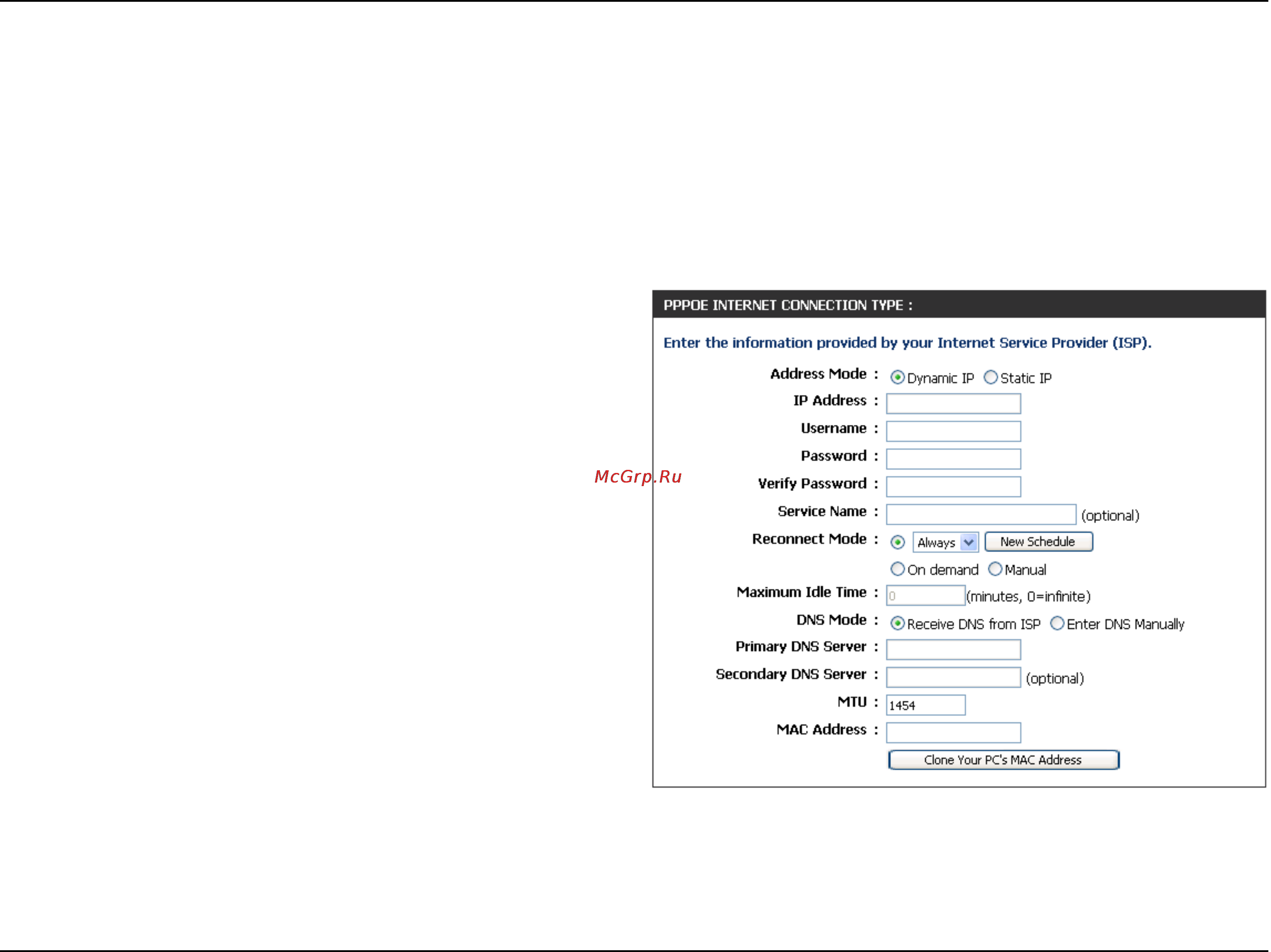

Choose PPPoE (Username/Password) from the My Internet Connection is drop-down menu if your ISP uses a
PPPoE connection. Your ISP will provide you with a username and password. This option is typically used for DSL
services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and will
not work through a router.
Manual Configuration (WAN Mode)
PPPoE (Username/Password)
