54D-Link DIR-412 User Manual
Section 3 - Configuration

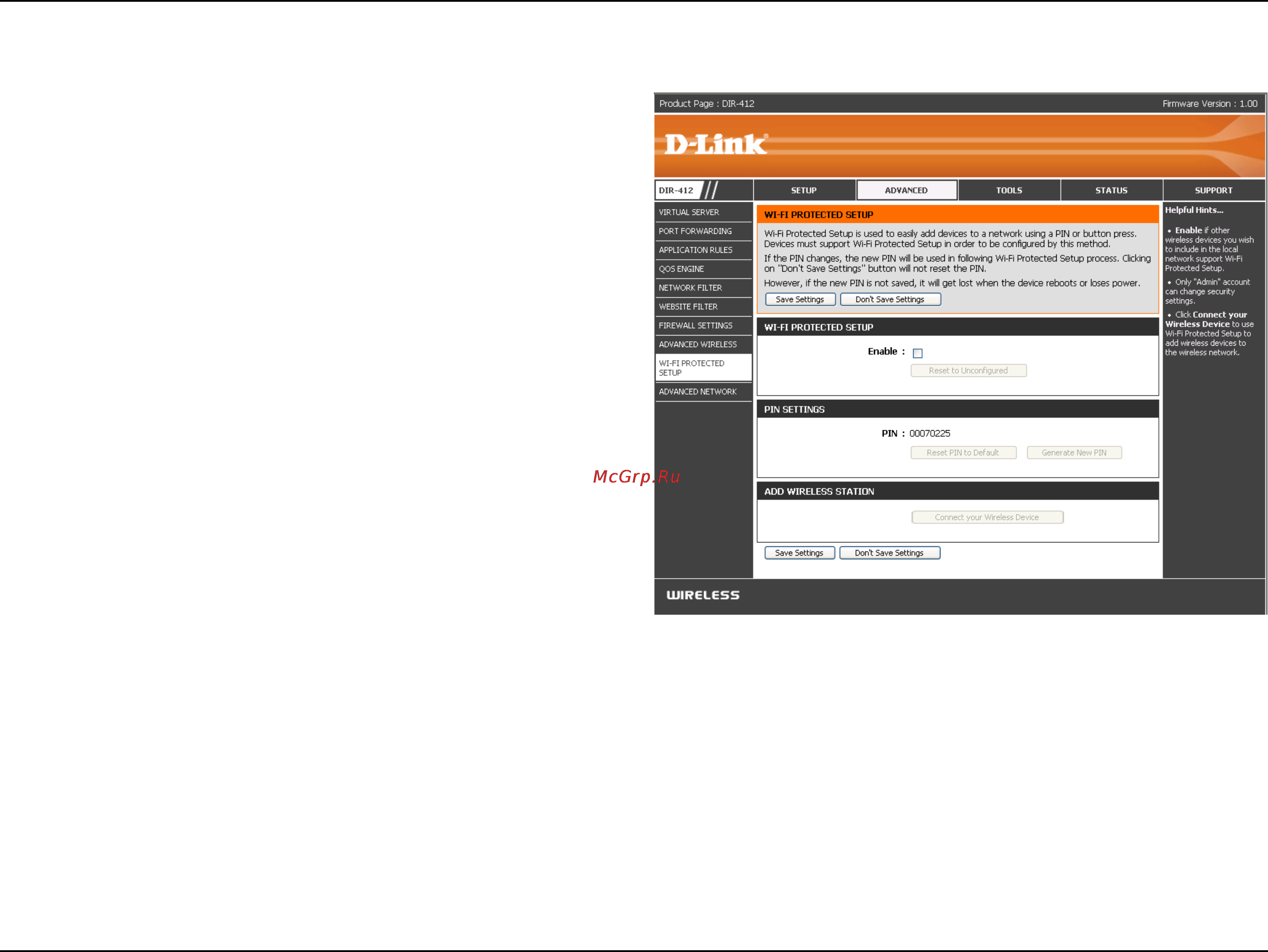

Wi-Fi Protected Setup
Check this box to enable the function
Use the buttons to generate a new PIN or Reset the
PIN to Default settings.
Click the button to start the wizard that sets up the
WPA function. Please refer to Section 4-Wireless
security “Add wireless device with WPA wizard” for
more information.
Wi-Fi Protected
Setup:
PIN Settings:
Add Wireless
Station:
