15D-Link DIR-412 User Manual

Section 3 - Conﬁguration

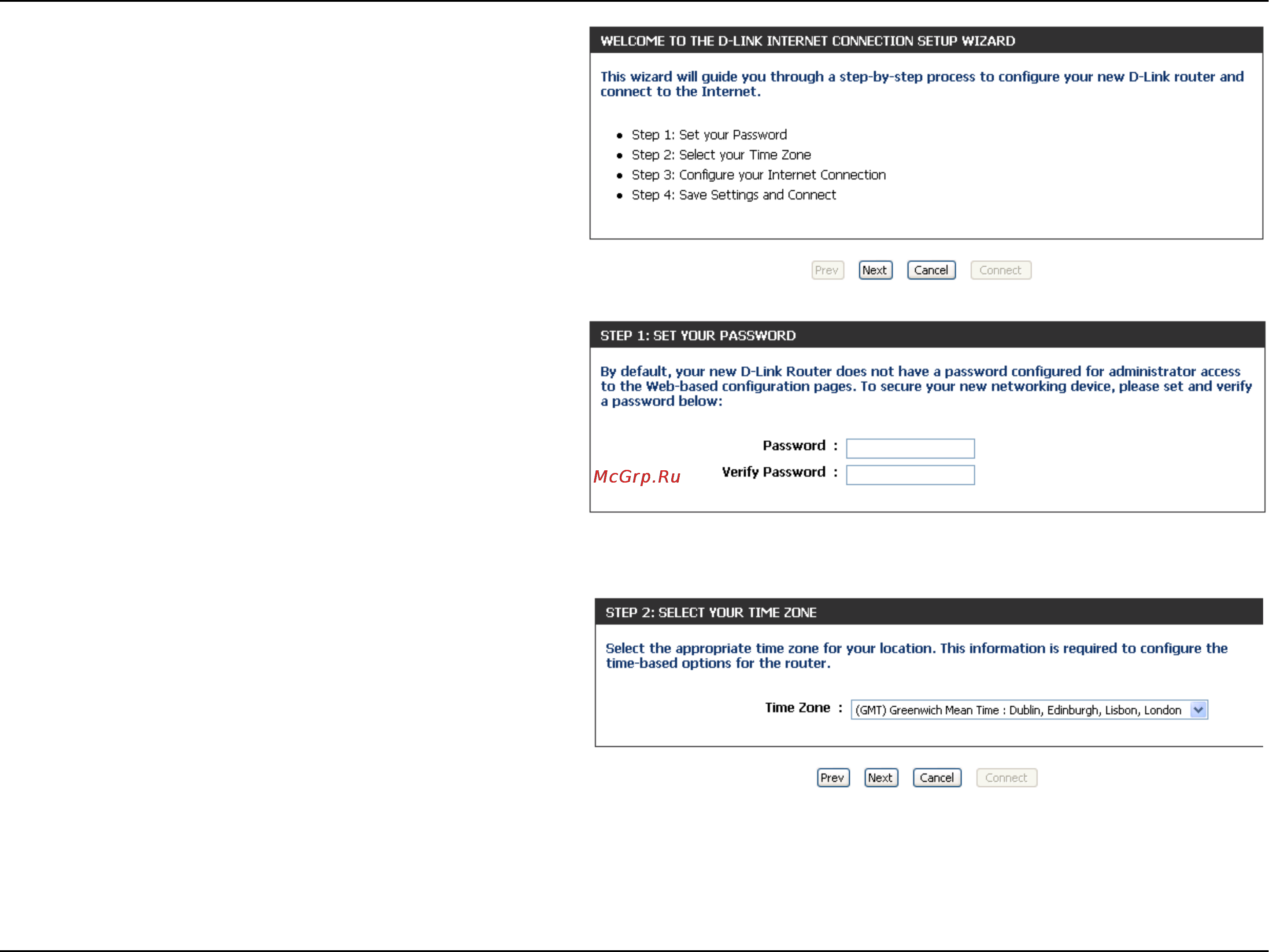

Click Next to continue.

Create a new password and then click Next to

continue.

Select your time zone from the drop-down menu and

then click Next to continue.
