73D-Link DIR-412 User Manual
Section 4 - Security

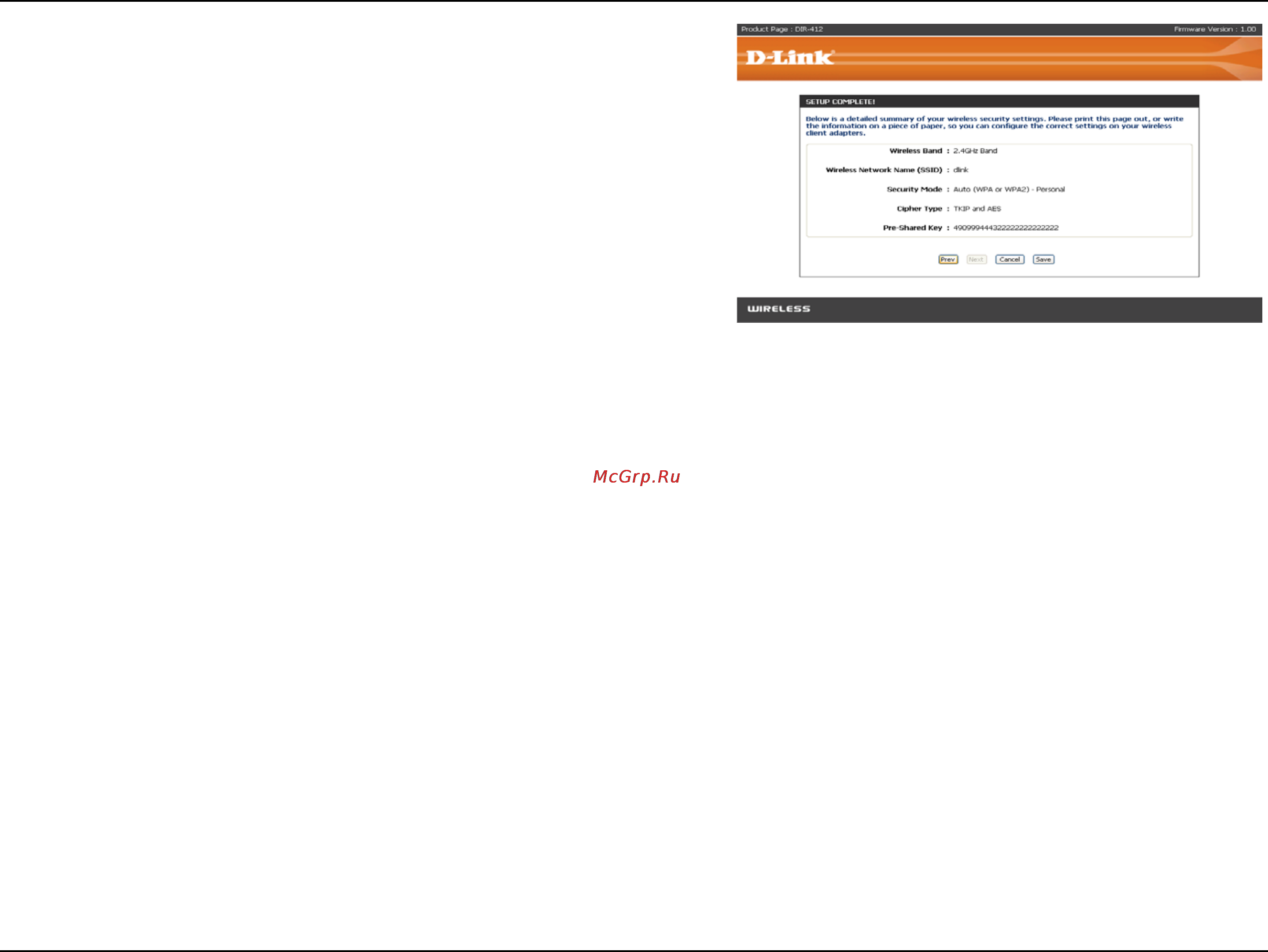

The following window appears to indicate that the Wireless
Connection Setup Wizard is complete.
If you selected the option that automatically generated a
network key, the automatically generated key will display next
to the Pre-Shared Key eld.
If you manually specied a network key, the Wireless Security
Password that you specied will display next to the Pre-Shared
Key eld.
Click Save to nish the Security Wizard.
