Installing the Unit

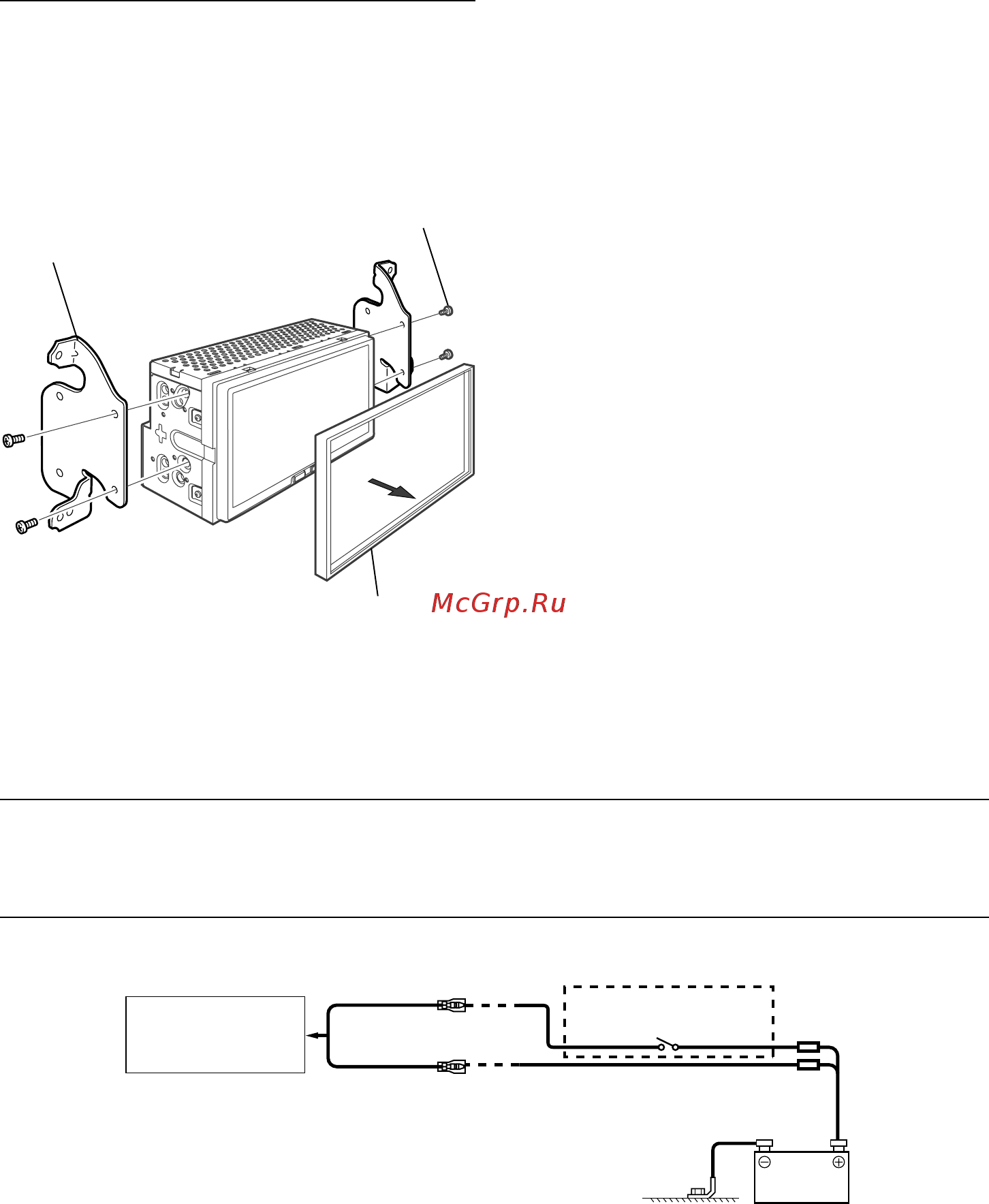

Remove the Face Plate from the unit.

Mount the original mounting bracket to the

unit using the supplied screws.

Screws (M5 x 8)

(Included)

Original Mounting Bracket

Face Plate (Included)

3 Connect all other leads of the unit

according to details described in the

“Connections” section (page 9).

Mounting the unit in a car.

* Use the removed Face Plate if needed.

Fix the Cables etc.

Fix the cables carefully. Do not damage them by tucking them into movable parts, such as a seat rail, or by

locating them against sharp or pointed edges.

Connection Diagram of SPST Switch (sold separately)

(If the ACC power supply is not available)

SPST SW (Optional)

iLX-700

ACC

(Red)

BATTERY

(Yellow)

FUSE (5A)

(Optional)

FUSE (20A)

(Optional)

Battery

If your vehicle has no ACC power supply, add an SPST (Single-Pole, Single-Throw) switch (sold separately) and fuse (sold

separately).

The diagram and the fuse amperage shown above are in the case when iLX-700 is used individually.

If the switched power (ignition) lead of the iLX-700 is connected directly to the positive (+) post of the vehicle’s battery, the

iLX-700 draws some current (several hundred milliamperes) even when its switch is placed in the OFF position, and the

battery may be discharged.

•
