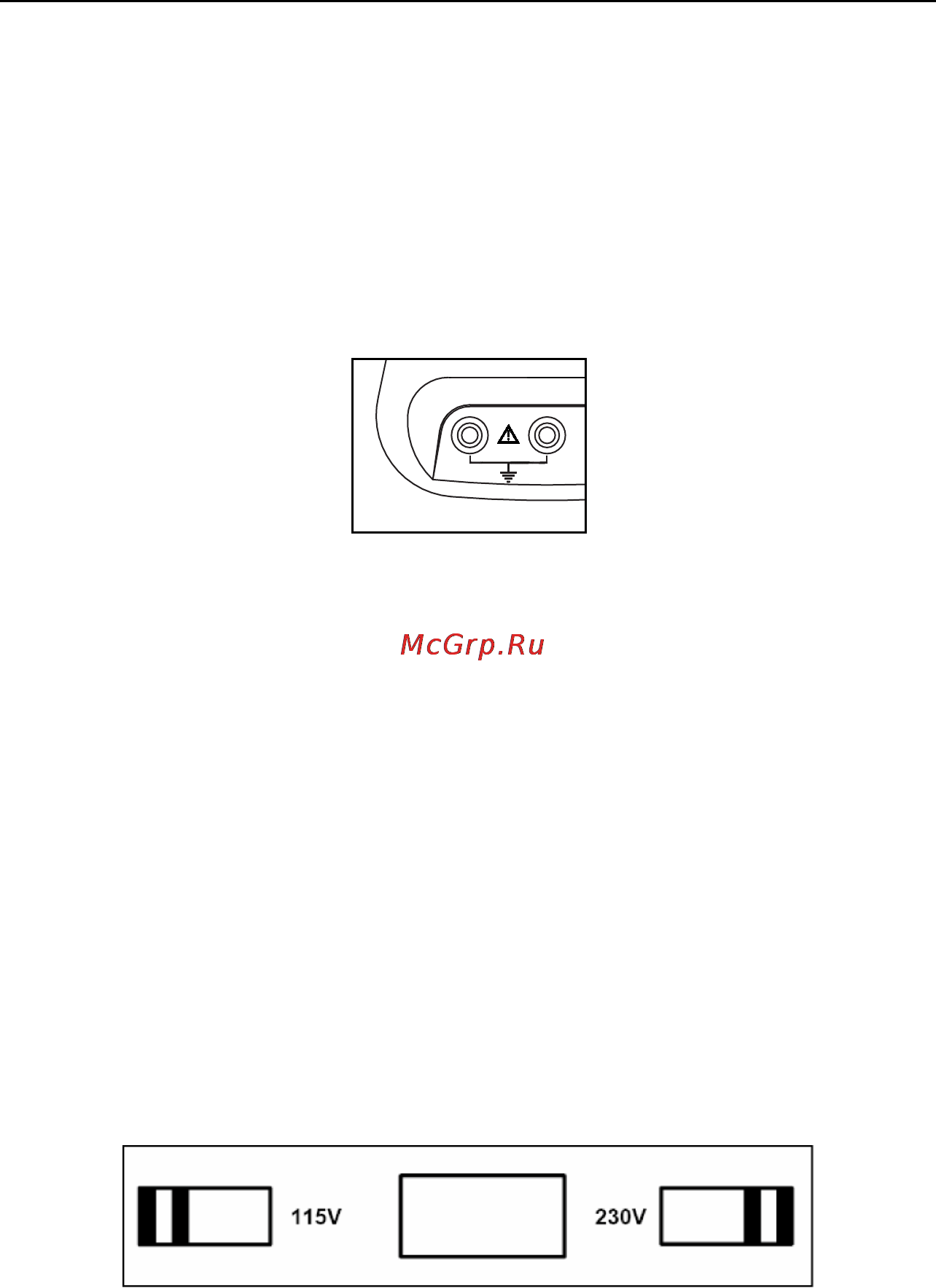

![Fluke 345 [29/80] Voltage measuring input](/views2/1005175/page29/bg1d.png)
Power Quality Clamp Meter
Measuring Inputs and Power Adapter
15
Measuring Inputs and Power Adapter
Voltage Measuring Input
The maximum input voltage for over-voltage category CAT IV may not
exceed 600 V to earth ground (825 V line to line voltage).
Figure 1 shows the voltage measuring input of the Clamp Meter.
COM V
600V
eln02.eps
Figure 1. Voltage Measuring Input
Note
• Do not remove any covers other than the cover of the battery
compartment.
• Refer all servicing to qualified personnel.
• The device may only be used indoors.
Power Adapter and USB Connection
Line power voltage may be set with the slider switch on BE345 Battery
Charger/Power Adapter to shown in Figure 2; settings are for 115 V or 230 V
installations.
Figure 2. Slider Switch for Line Power Voltage (115 V and 230 V)
