345
Users Manual
16
W X Warning
• Use only the power supply, Battery Charger/Power
Adapter (Model BE345).
• Before use check that the selected voltage range
indicated on the BE345 matches the local line
power voltage and frequency (refer to Figure 2). If
necessary, set the slider switch of the BE345 to the
correct voltage.
• For the BE345, use only ac line plug adapters or ac
line cords that comply with local safety regulations.
The power (mains) source must conform to the following input ranges/values:
• Euro/UK adapter: 210...264 VAC, 47...53 Hz/ 8 VA
• US Adapter: 100…120 VAC, 57…63 Hz/ 8VA

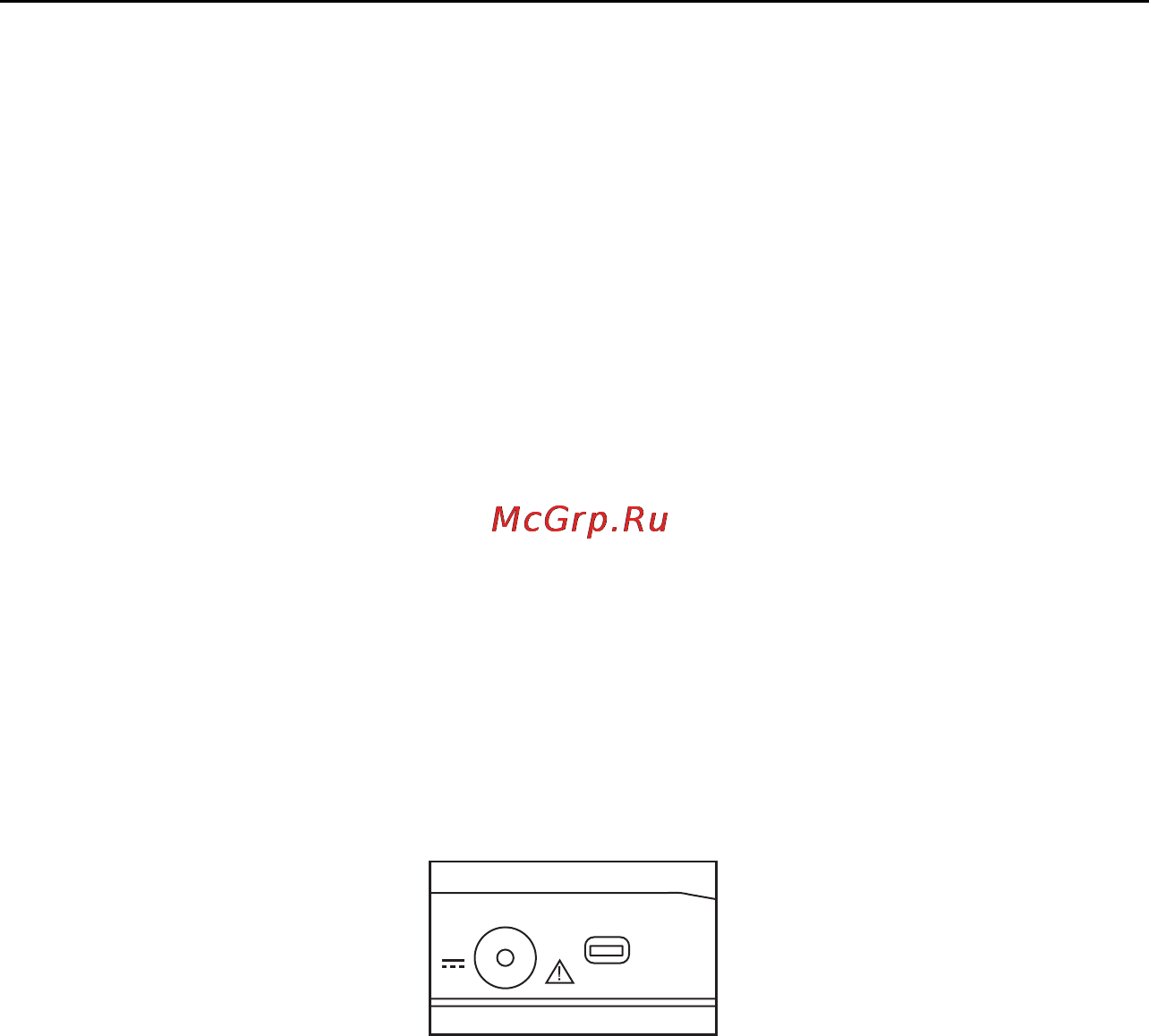

Figure 3 shows the power adapter and USB ports for the Clamp Meter.
USB
eln03.eps
Figure 3. Power Adapter and USB Connection
Voltage measuring inputs should be disconnected before attaching the USB
cable to a PC. Saved data may be downloaded to a PC using the supplied USB
cable; review saved data using the software included on the CD.
Design and Functions
This section provides an overview of the terminals, ports, and interfaces of the
Clamp Meter, as well as a list of display and operating devices, and a brief
introduction to the basic functions.
