Fluke 345 [43/80] Measurement setup
![Fluke 345 [43/80] Measurement setup](/views2/1005175/page43/bg2b.png)
Power Quality Clamp Meter
Measurement Setup
29

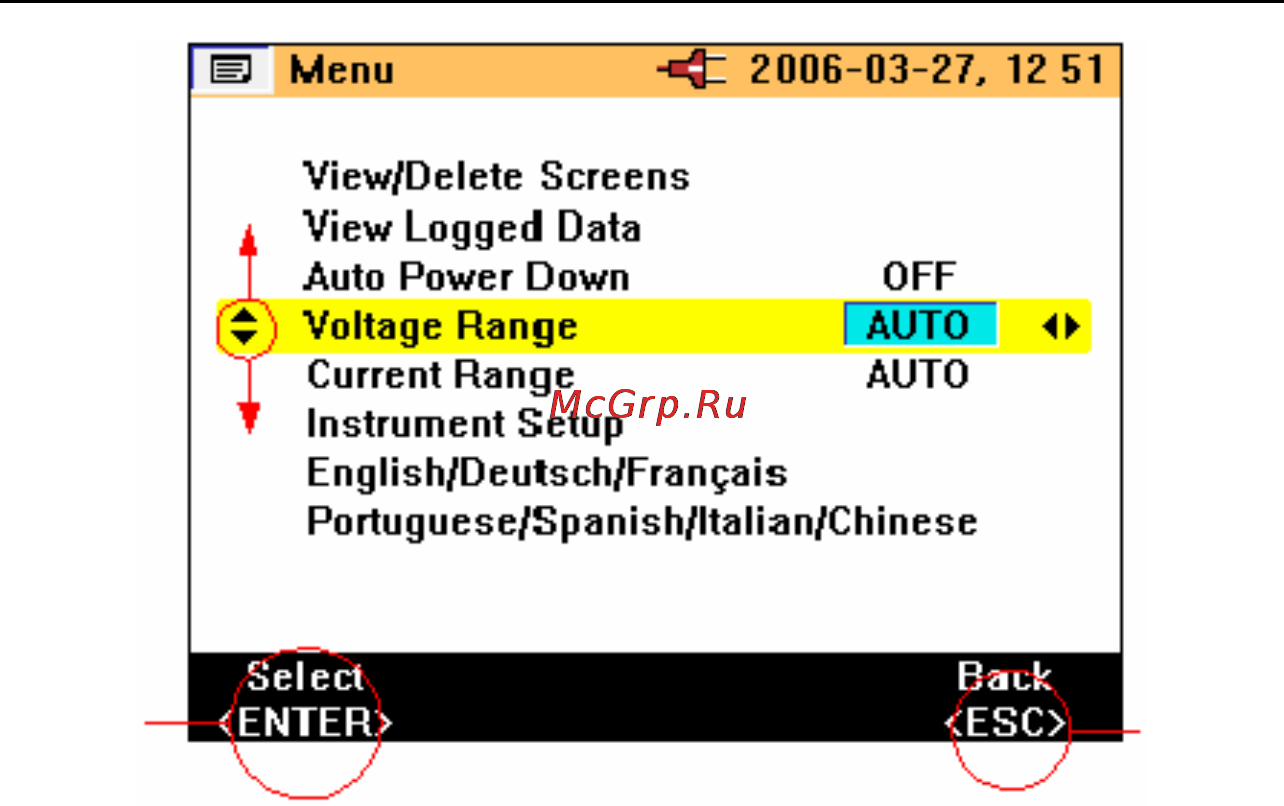

Figure 11. Navigation through the Display
Measurement Setup
Basic Adjustments Required before Measuring
Before making measurements, some basic items must be considered, such as:
Auto Power Down: Select OFF (or ON to conserve battery life).
Voltage ranging: Voltage range may be selected for automatic or
manual operation (4 V, 40 V, 400 V and 750 V).
Current ranging: Current range may be selected to operate
automatically or manually (40 A, 400 A and 2000 A).
