Power Quality Clamp Meter
Measurements
35

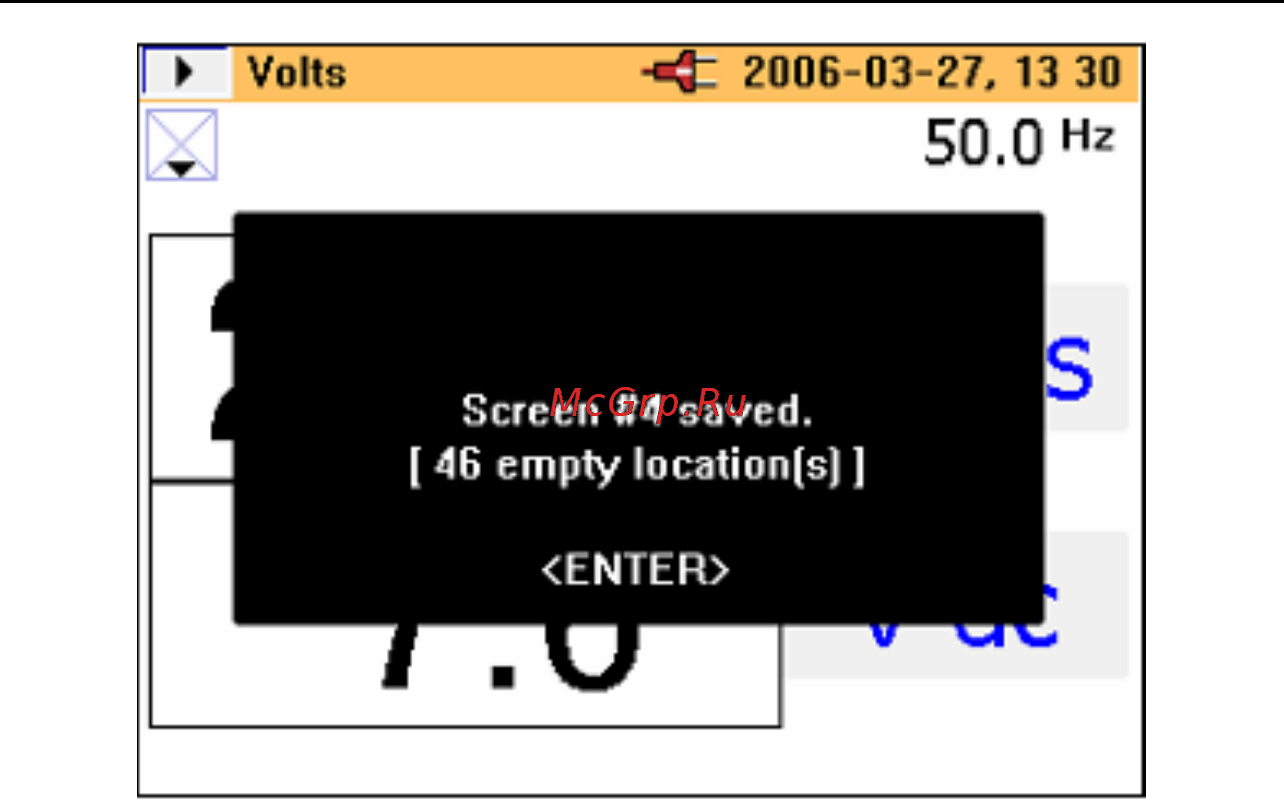

2. Press E to accept the screen displayed.
The screens are saved sequentially in the available memory locations. There
are a total of 50 locations available.
The saved screen may be managed, that is, viewed and deleted, using the main
menu. When the screen is saved, the following information is used to label the
screen in memory:
• Measurement type
• Measurement state (Run or Hold)
• Date and time stamp
Viewing Saved Screens
To view the saved screens:
1. Press
M to access the main menu. View/Delete Screens is the first
available option in the menu.
2. Press
E to go to View. The following screen is displayed.
