Power Quality Clamp Meter
Configuration
27
Display Symbols

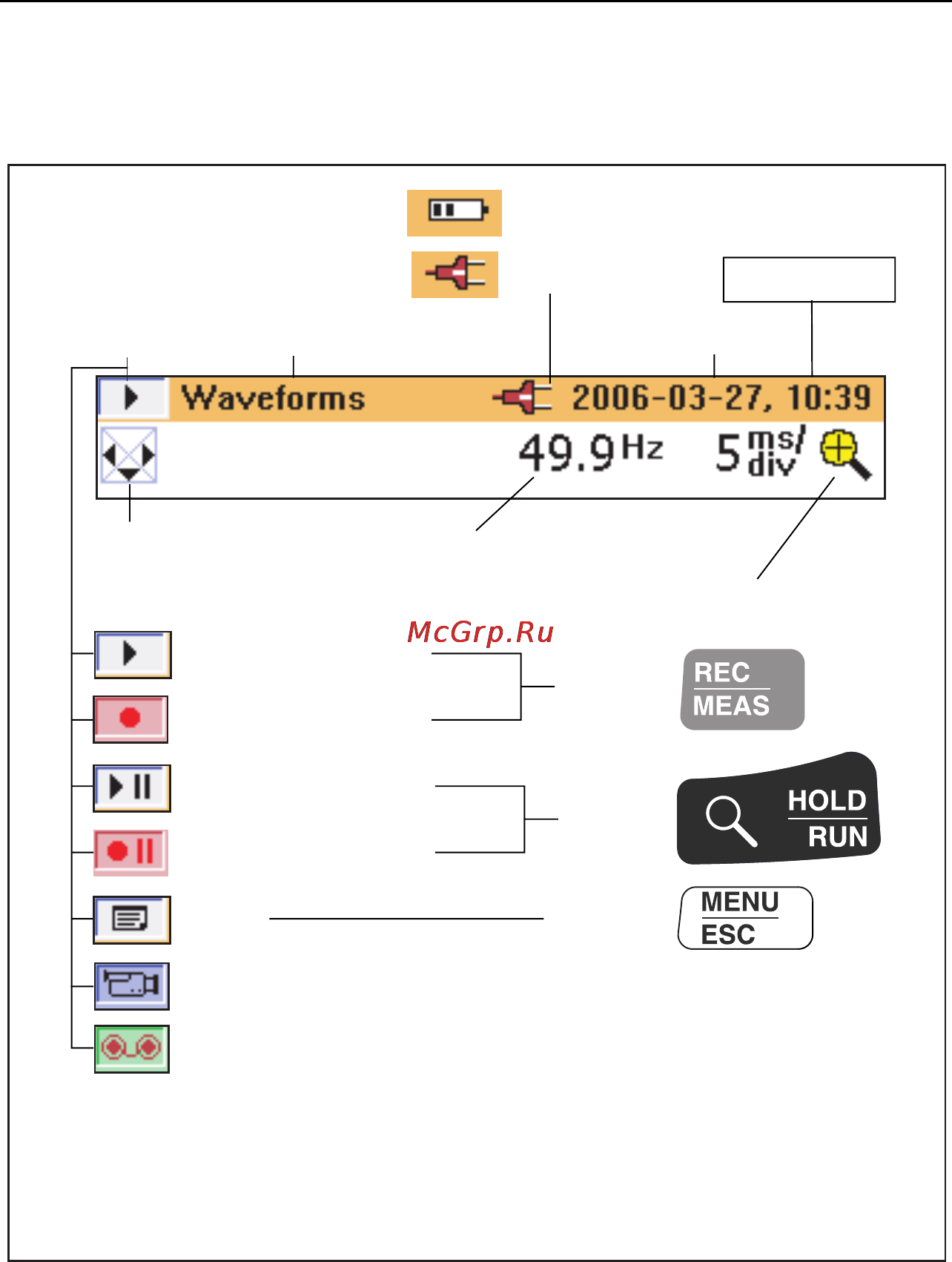

Figure 10 details the display symbols of the Clamp Meter.
+
Power supply:
Battery operation
Mains operation
Headline bar
Date and Time
Measured frequency
Measuring mode
Logging mode
Active
with:
Active
with:
Active
with:
Hold in measuring mode
Hold in logging mode
Menu
Display of stored data
Display of logged data
The headline bar changes colour depending on mode:
Orange : measuring mode
Red : recording mode
Zoom function (where available)
Current measuring function
Status display
NAVkey - Indicates
direction of
available screens
eln10.eps
Figure 10. Display Symbols of Clamp Meter
Available battery power is indicated as a set of bars. Four bars indicate
maximum, one bar warns of minimum power, and no bars indicates batteries
may fail within the next 30 minutes. All levels are approximate.
