345
Users Manual
20
Note
The Clamp Meter operates from standard alkaline cells. The batteries
are bypassed when the mains adaptor is plugged in to the Clamp
Meter and a power source.
Rechargeable cells cannot be charged inside the instrument.
Switching the Clamp Meter On
To turn on the Clamp Meter:
1. Turn the central rotary selector to selected measurement position.
2. The device is now ready for operation.

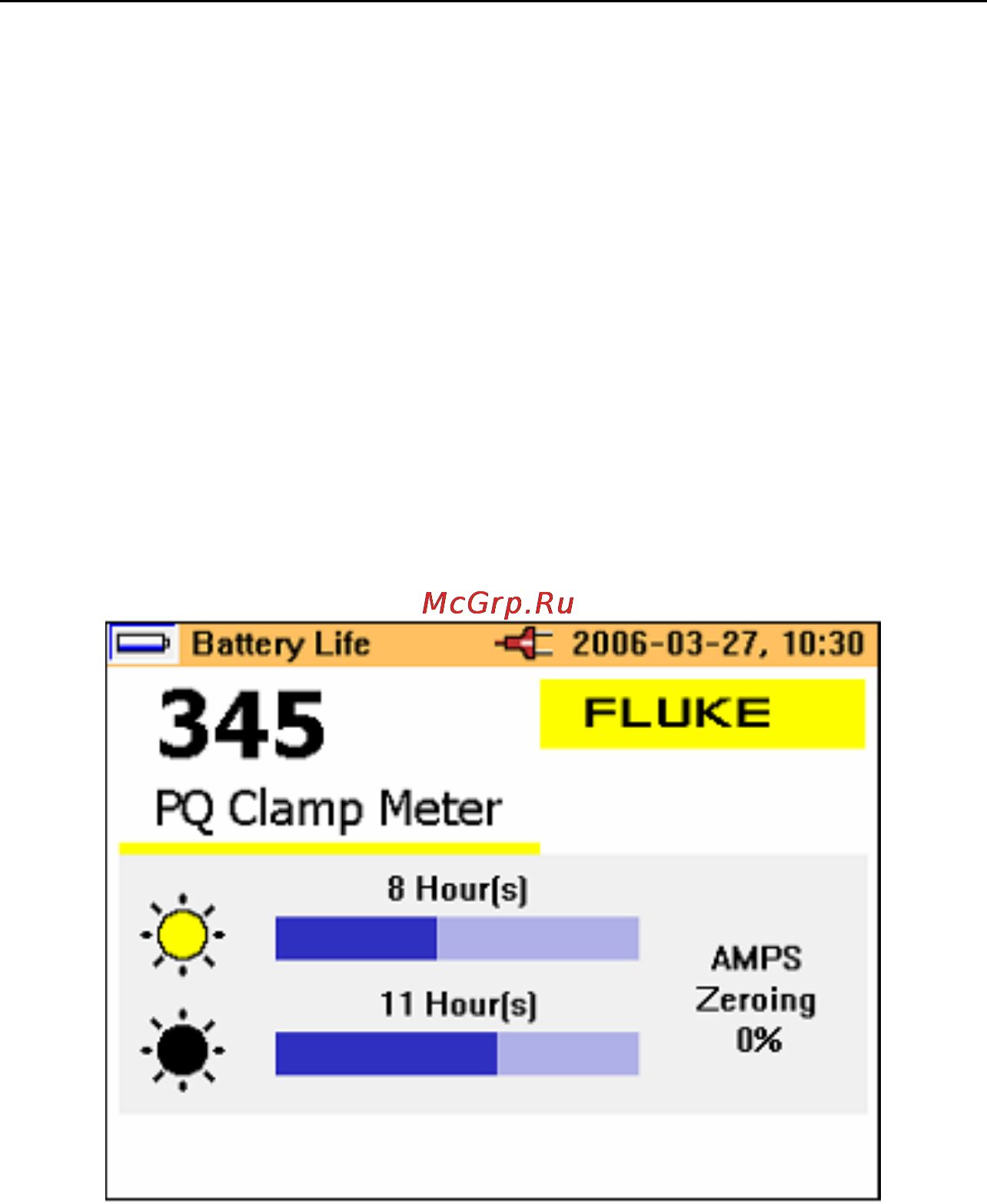

Figure 6 displays the battery life screen following start-up.
Figure 6. Battery Life Screen of Clamp Meter
3. The instrument will auto zero the current measuring circuit during the
start-up period, and the progress of the process is indicated on the
display.
