345
Users Manual
48
Table 6. Harmonics Measurements
Measurement Notation Scales and
Ranging
Associated Items
and Comments
Voltage
harmonics
V
fund to V40th
1st to the 40th
Current
harmonics
V
fund to V40th
1st to the 40th
Adjustable zoom
scale (100 %,
40 %, 10 % and
4 %)
RMS parameter,
THD, individual
harmonic value (V, A
or W) or as % of
fundamental or % of
distortion factor

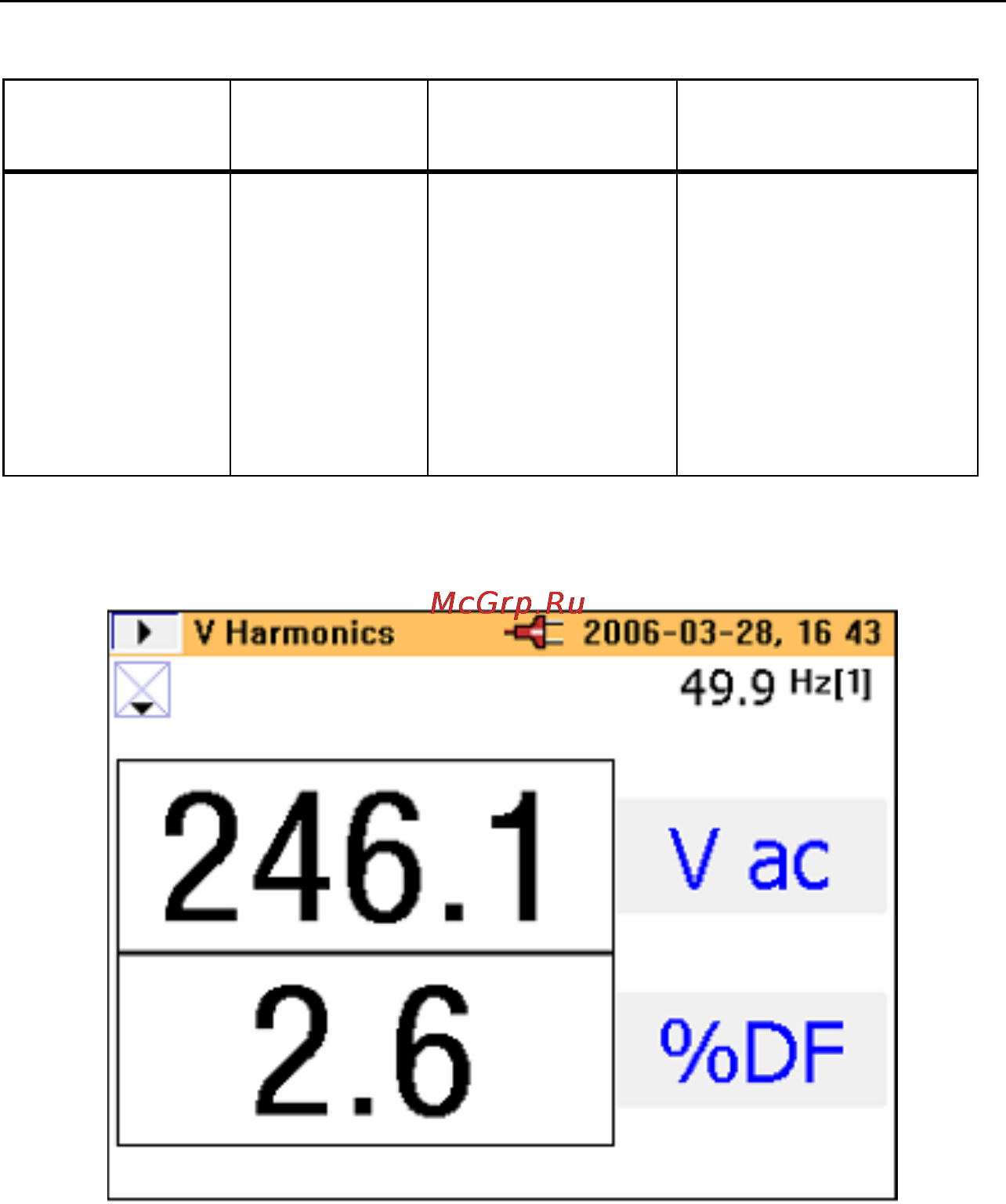

On first selecting the harmonics mode the ac RMS voltage and % distortion
factor are displayed as shown following display.
Other associated measured values are available by pressing the J key.
