Fluke 345 [78/80] Recording playback
![Fluke 345 [78/80] Recording playback](/views2/1005175/page78/bg4e.png)
345
Users Manual
64

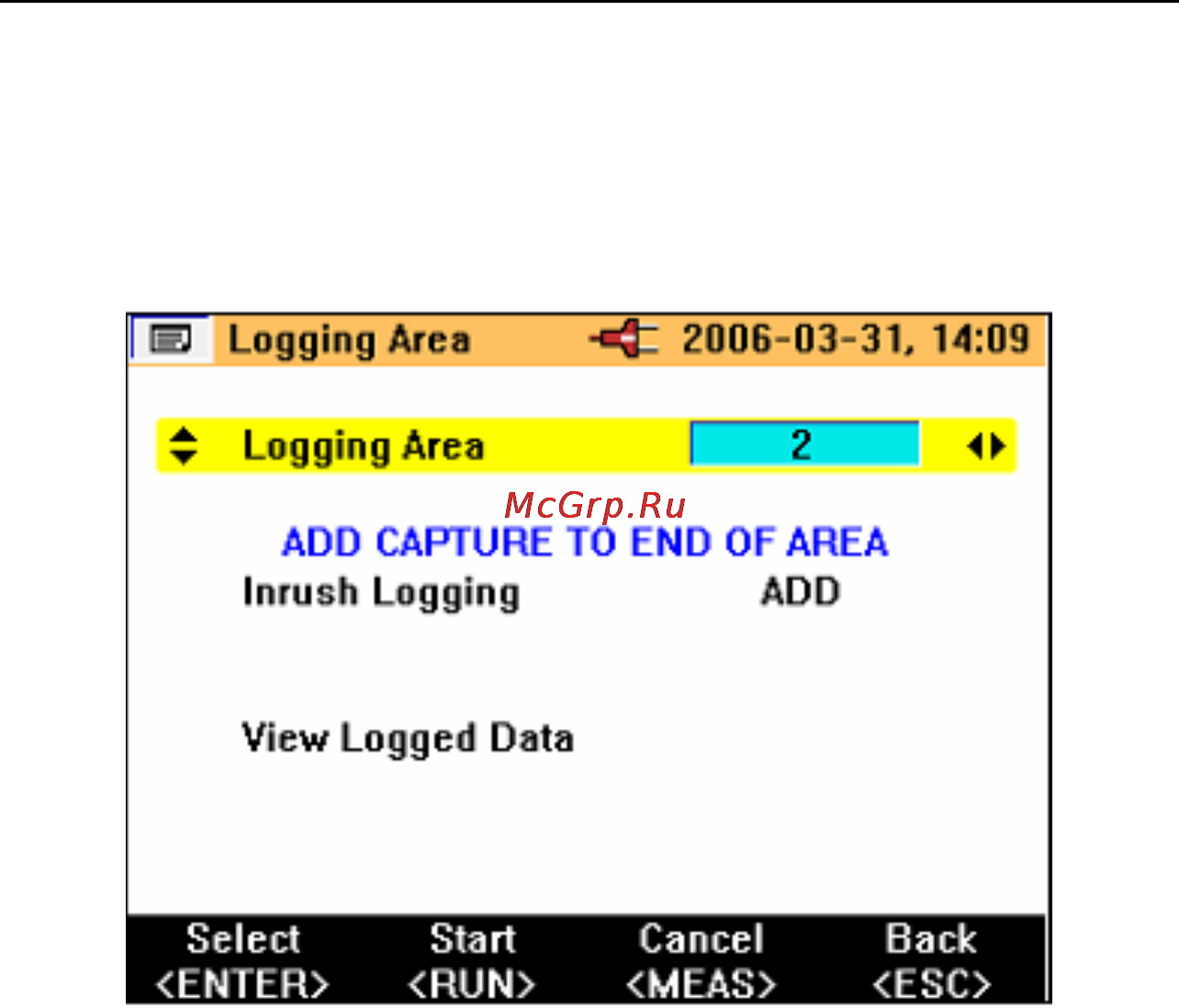

If additional inrush events are to be captured after exiting the inrush mode,
these may be appended to an existing record by choosing a logging area that
already contains inrush events, as in the screen displayed below. Alternatively,
the old records may be overwritten by selecting the Inrush Logging item and
choosing the NEW option (not shown).
I Recording Playback
Inrush records are stored in the same memory area as other logged data, and
can be viewed on the Clamp Meter display. They may also be downloaded
from the Clamp Meter and reviewed offline using the previously mentioned
software and USB cable.
Viewing the recorded data is that same as any other logged data; to access
these records, press
M. To view the logged data, select the View Logged
Data menu option and press
E as shown in the following display.
