Fluke 345 [50/80] Logging tips
![Fluke 345 [50/80] Logging tips](/views2/1005175/page50/bg32.png)
345
Users Manual
36

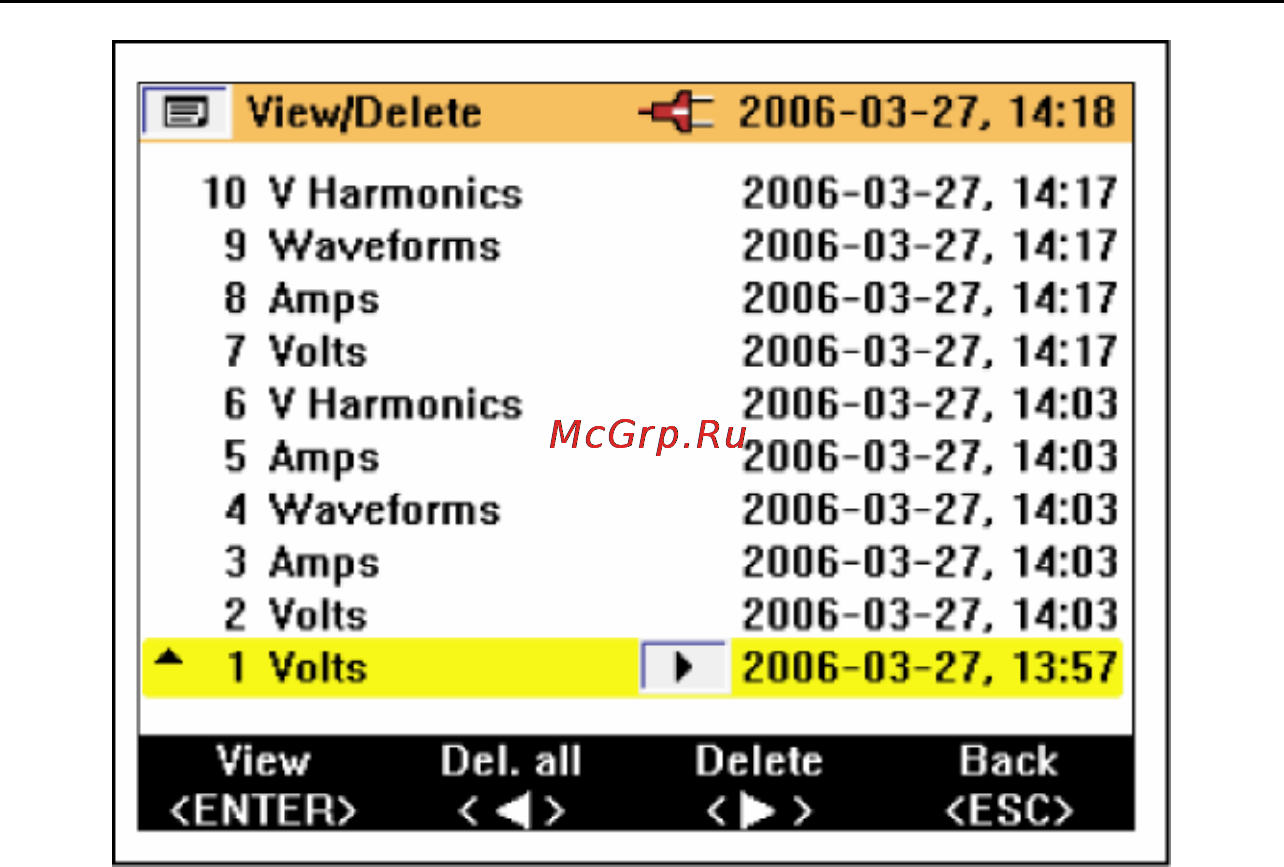

3. Press JK to select the screen required for viewing; recall
the screen by pressing
E when the saved screen is highlighted.
4. Press
E and the saved screen is displayed.
W Note
A warning is displayed at the top of the screen to indicate that the
readings are not the active measurements. Screens may also be
deleted in this mode.
Logging Tips
The Clamp Meter allows three kinds of Logging, and logged data is made up
of average values. The detailed steps are outlined below, following a series of
preliminary setup adjustments to ensure continuous power while recording or
Logging.
