Power Quality Clamp Meter
Measurements
37
Note
The Auto ranging option is initially highlighted, although it is
recommended that the Auto ranging be switched off. Otherwise, if the
instrument re-ranges during the recording scaling, there may be a
gap in the recording as the instrument stabilizes.

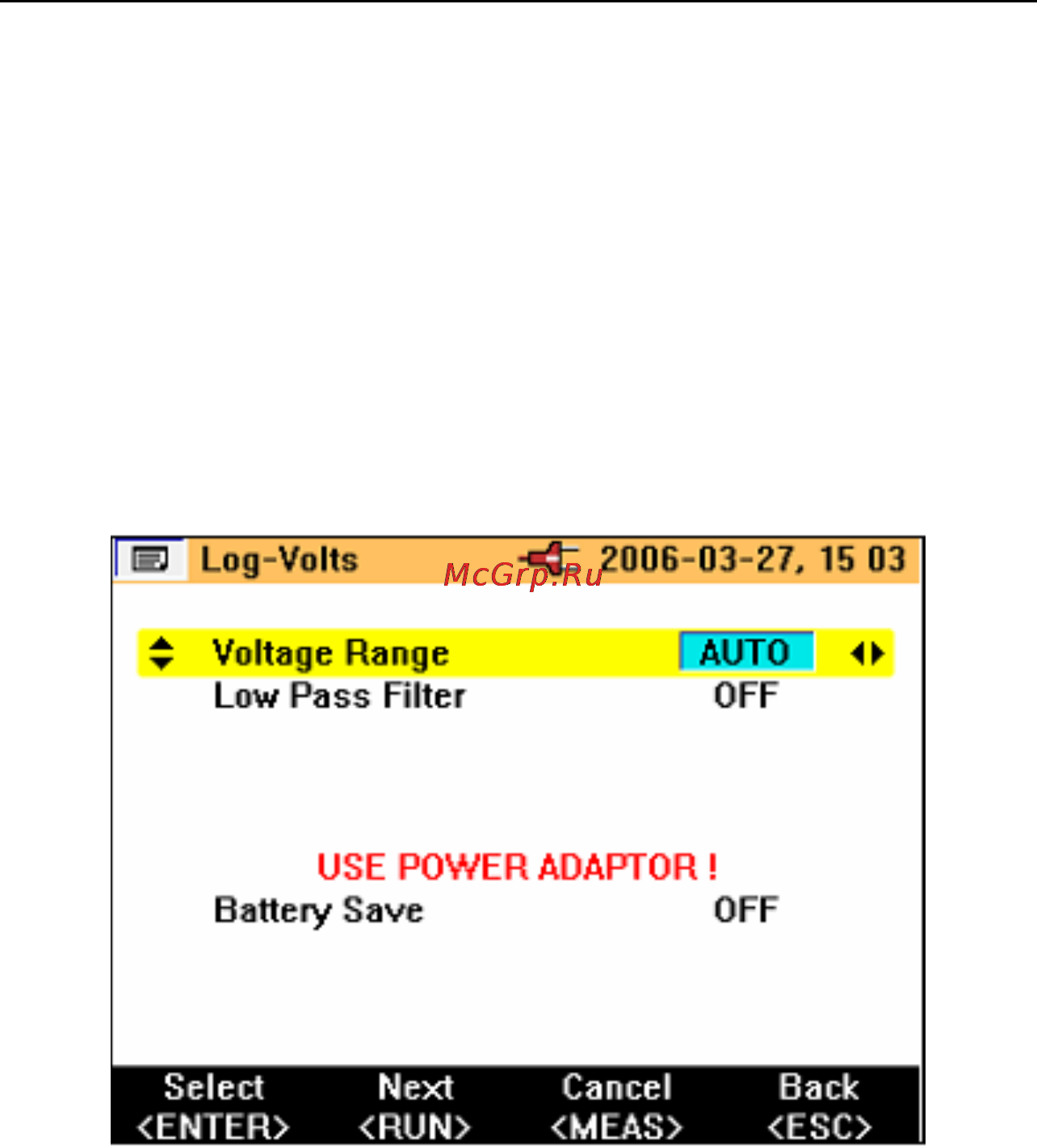

Step 1 – Instrument Setup:
To setup the instrument:
1. Select an item using JK andFG.
2. Press
H to go to the next step as shown in the following display.
3. The battery save function may also be activated or deactivated in this
screen.
4. Press
H to go to the next step.
Note
It is recommended that the power adaptor be connected during
Logging. If power to the adaptor is interrupted during the recording,
the Clamp Meter internal batteries will continue to power the
instrument.
