345
Users Manual
38
The Battery Save function is still available when recording without
the power adaptor connected.
This function is switched on or off using the FG keys. In
this mode the instrument switches itself off after approximately
5 minutes to preserve battery power. The initiation of the power down
function is indicated by an intermittent audible bleep.
Step 2 – Logging Setup:
Logging (recording) is initiated by pressing and holding
R for
approximately 3 seconds or until the Logging Area screen is displayed. On
pressing the
R button again, the step-by -step recording process begins.

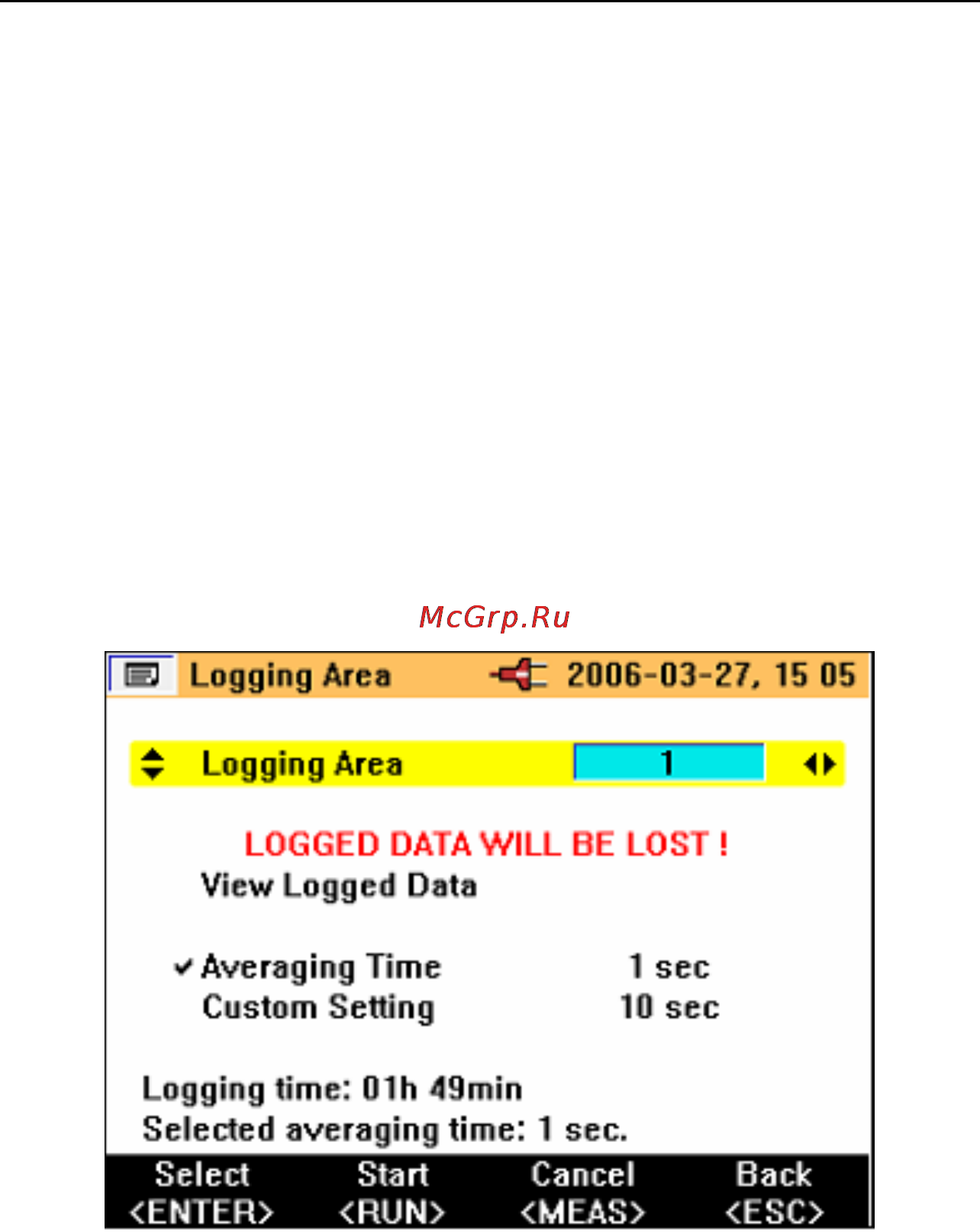

The Clamp Meter has three logging areas available; recording area 1 is
selected by default, as shown in the following display.
Select the Logging Area using F and G. There are actually four
options to choose from: logging area 1, 2, and 3, or logging areas 1-2-3
combined for a longer logging time.
Any data present in Logging Area will be over-written during the logging
process.
