Power Quality Clamp Meter
Measurements
39
Logged data is made up of averaged values. There are standard averaging
times of 1, 2, 5, 10, 30 seconds and 1, 5, 10 and 15 minutes. Additionally, it is
possible to customize the averaging time from 1 second to 900 seconds in 1-
second steps.
The averaging time is selected by highlighting the item Averaging Time and
using the FG keys to select the required time, as shown in the
following display.

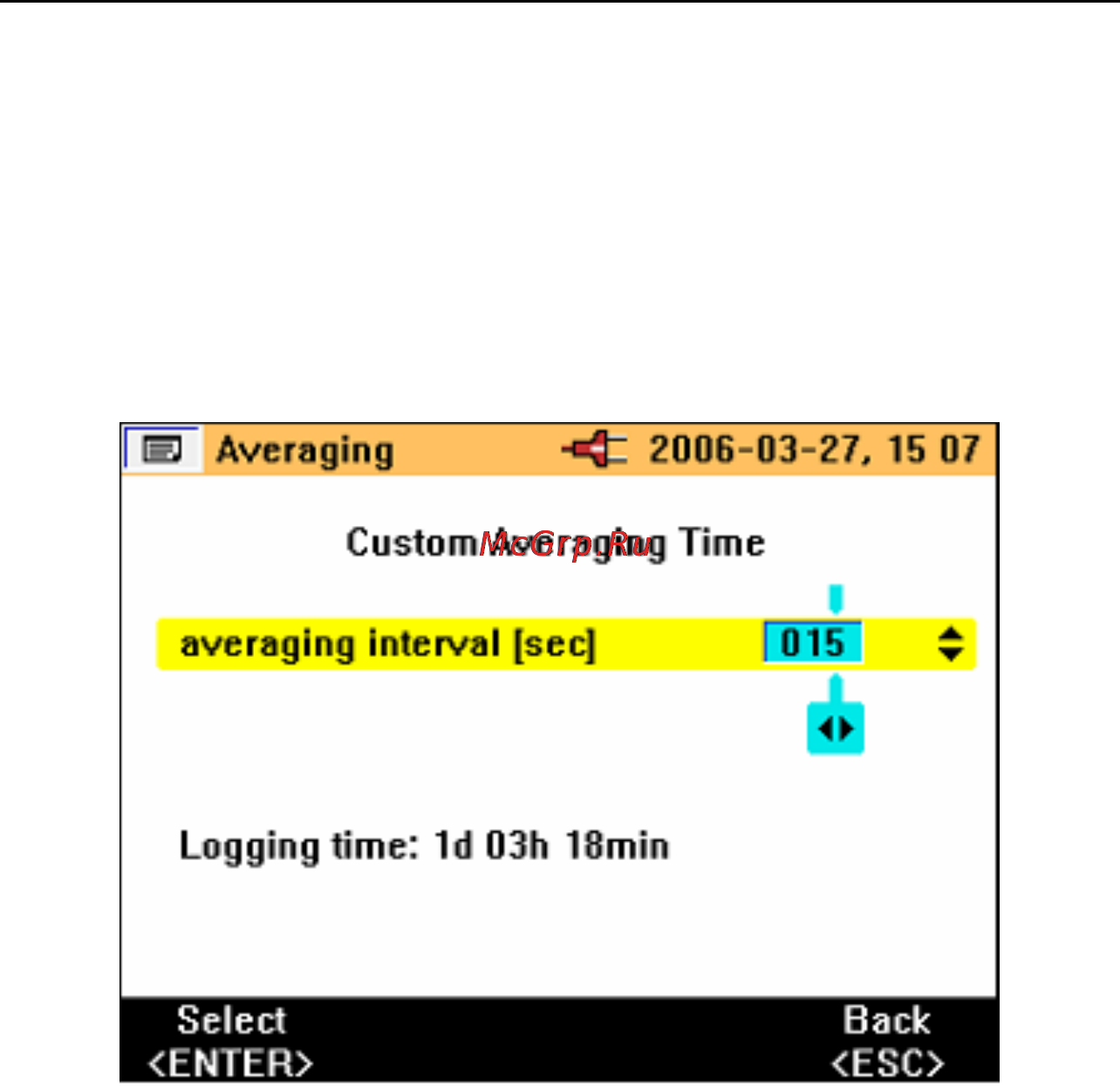

If a non-standard averaging time is required, the Custom Setting may be
highlighted using the JK keys.
Use FG and JK to select the requested averaging time.
The available logging time is indicated based on the logging area chosen and
the average time selected. The logging time will vary depending on the
measurement position. The logging times for each measurement mode and the
available averages are detailed in the “Logging Times for Each Measurement
Mode and Averages” section.
Press
H to start recording. The message LOGGING is displayed, and then
a trace appears on the instrument display as shown in the following display.
