Power Quality Clamp Meter
Measurement Setup
31
Current Range Settings
To select either manual or automatic current ranging:
1. Press
JK until Current Range is selected.
2. Press
FG to change the setting. The available choices are
AUTO, 40 A, 400 A, and 2000 A.
3. Press
E to confirm selection.
4. To exit without changing, press
M.

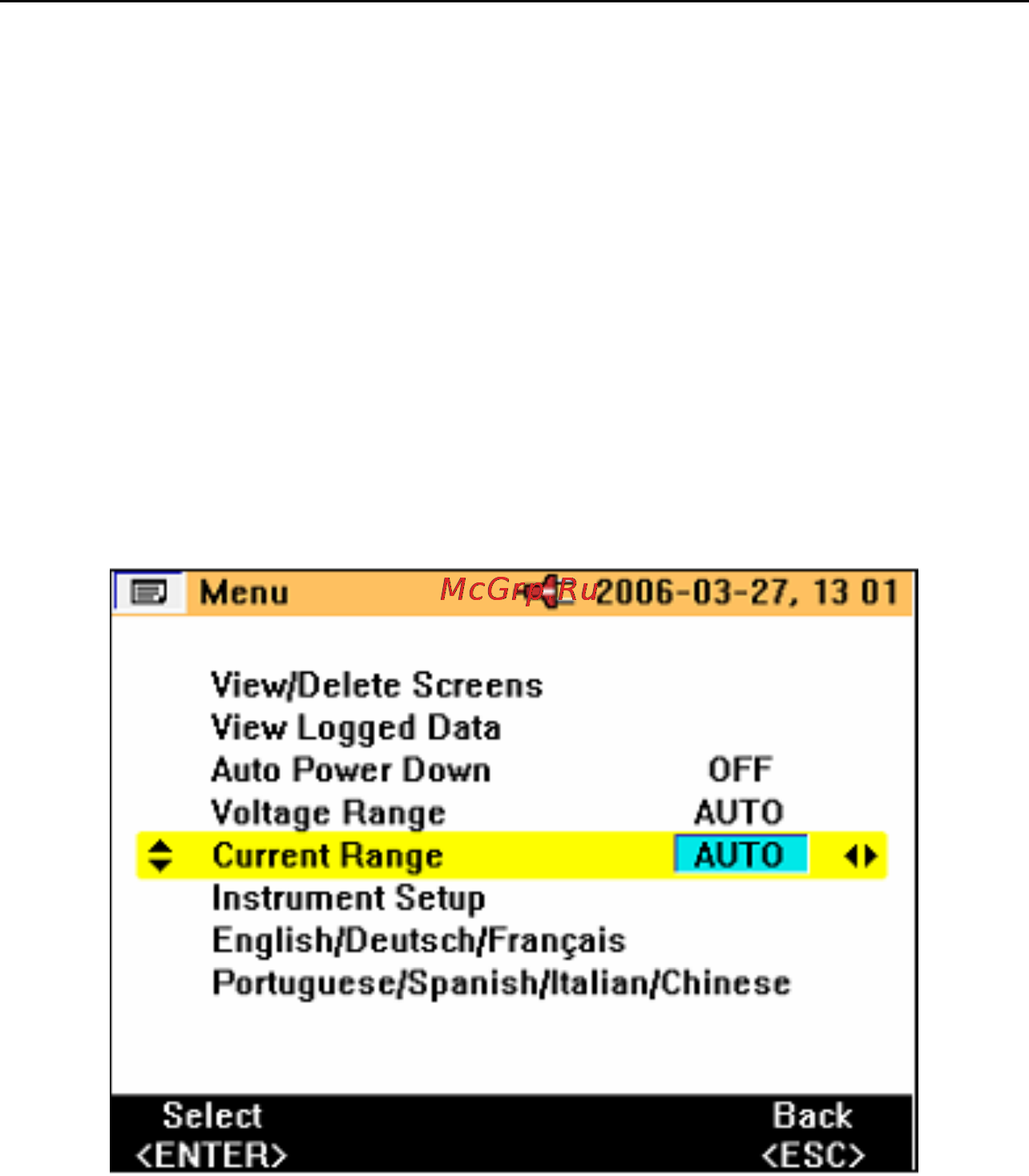

Figure 13 shows the current range settings for the Clamp Meter.
Figure 13. Current Range Settings
Additional Instrument Settings
To view or adjust the additional settings:
1. Select Instrument Setup from the main menu.
2. Press
E to go activate the settings sub-menu.
3. Press
JK to move cursor to the required item.
