Fluke 345 [40/80] Configuration
![Fluke 345 [40/80] Configuration](/views2/1005175/page40/bg28.png)
345
Users Manual
26

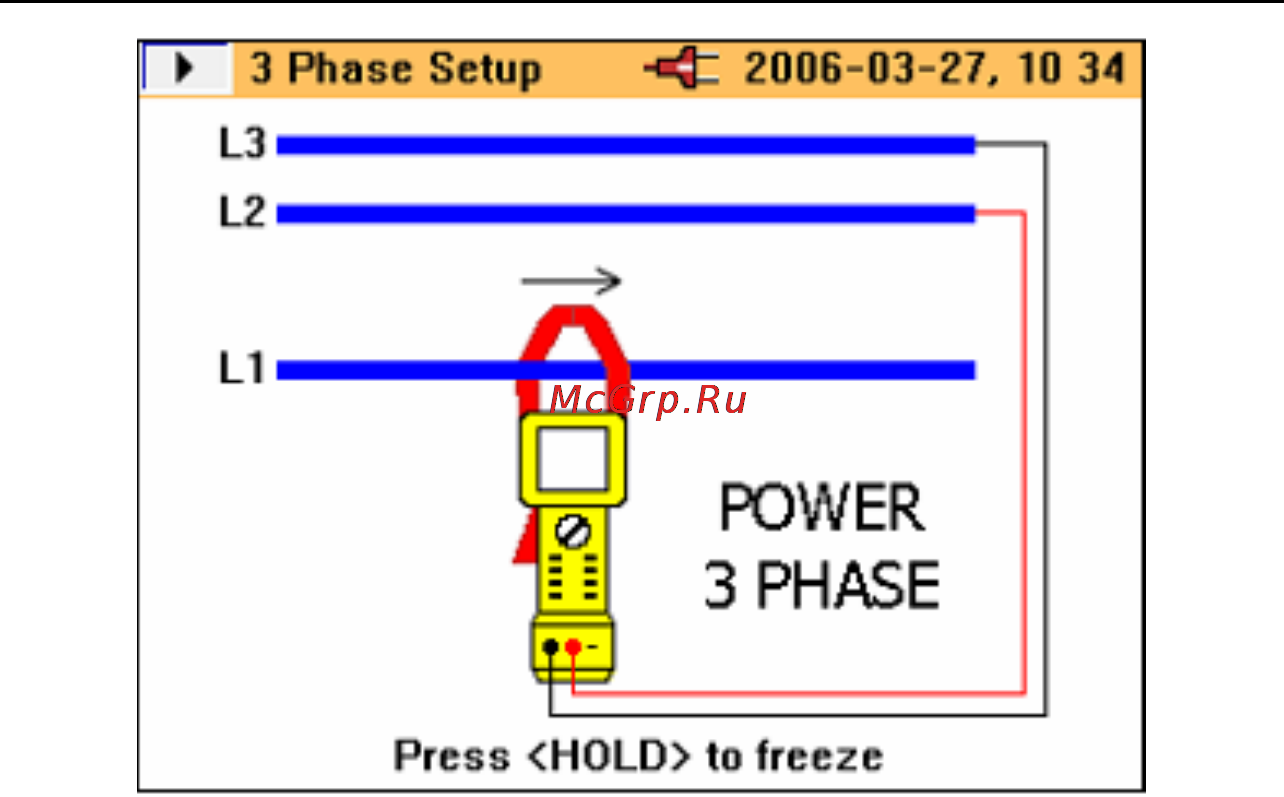

Figure 9. Three-Phase Power Connection
Note
Always adhere to the instructions regarding the sequence of
connection.
Configuration
Operating Controls and Display
This section familiarizes you with some basic control elements, such as the
display and the connections for the Clamp Meter.
The Clamp Meter is turned on and off by rotating the central selector switch.
Turn the selector clockwise for ON and counterclockwise to turn OFF. Each
of the available measuring functions is selected by turning the rotary selector
to the required position.
