Power Quality Clamp Meter
Measurements
41
The minimum and maximum values are based on half-cycle RMS values.
Minimum and maximum values are indicated by blue and red triangles on the
respective graphed values.
During logging, the headline bar is highlighted in red.
Logging may be stopped by pressing
R and a message Stop Logging? is
displayed; to halt logging, press
E key as shown in the following
display.

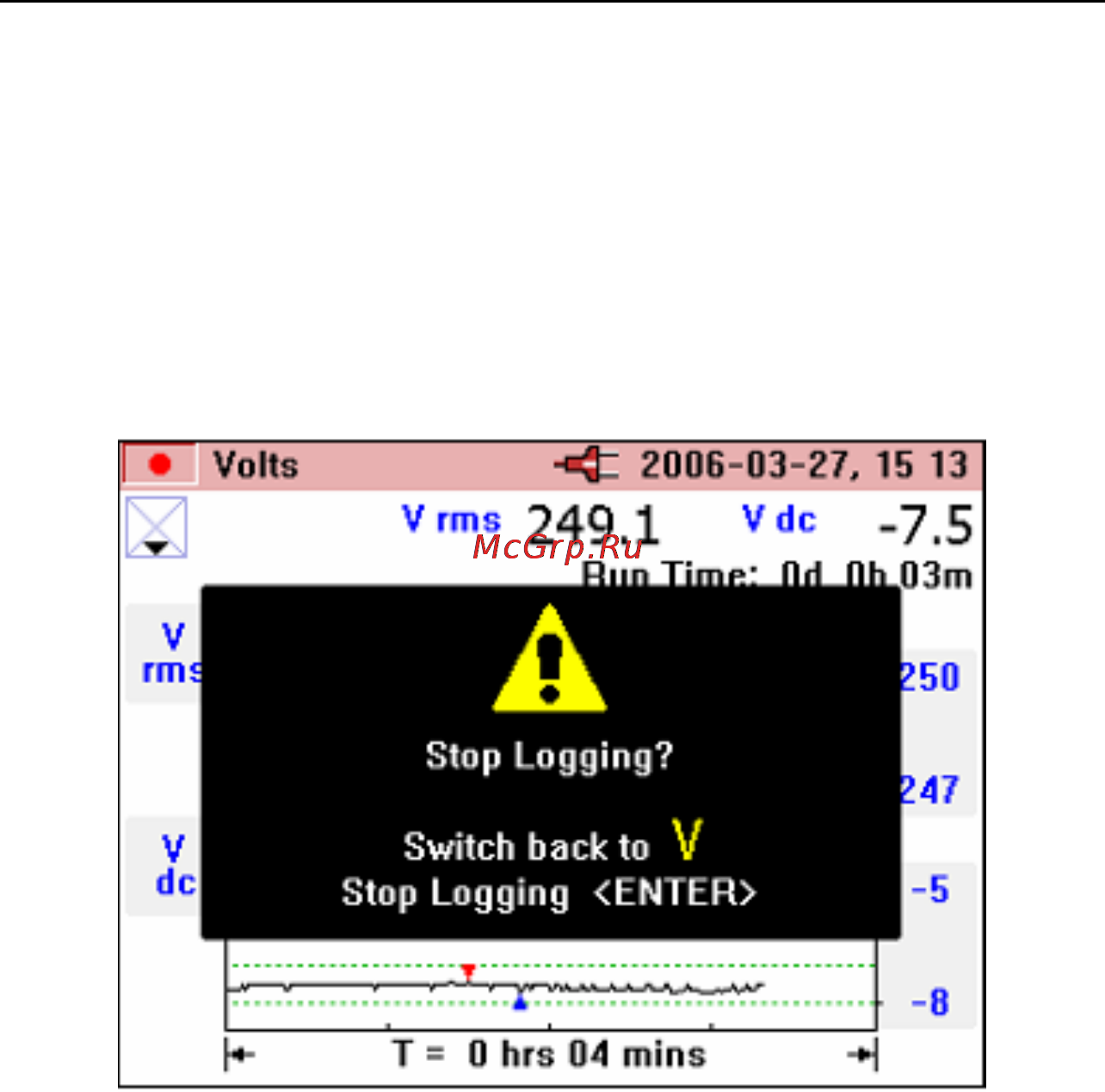

If the rotary switch position is changed during the logging, the message Stop
Logging? appears onscreen; confirm by pressing
Eto end logging.
Alternatively, return the rotary switch to the original measurement position,
and recording will continue.
Any logged data present in the Clamp Meter can be checked by pressing
M
and selecting the “View Logged Data” menu item.
Press JK and select record with
E as shown in the following
display.
