345
Users Manual
44
Two major values are displayed initially. Additional values may be accessed
by pressing

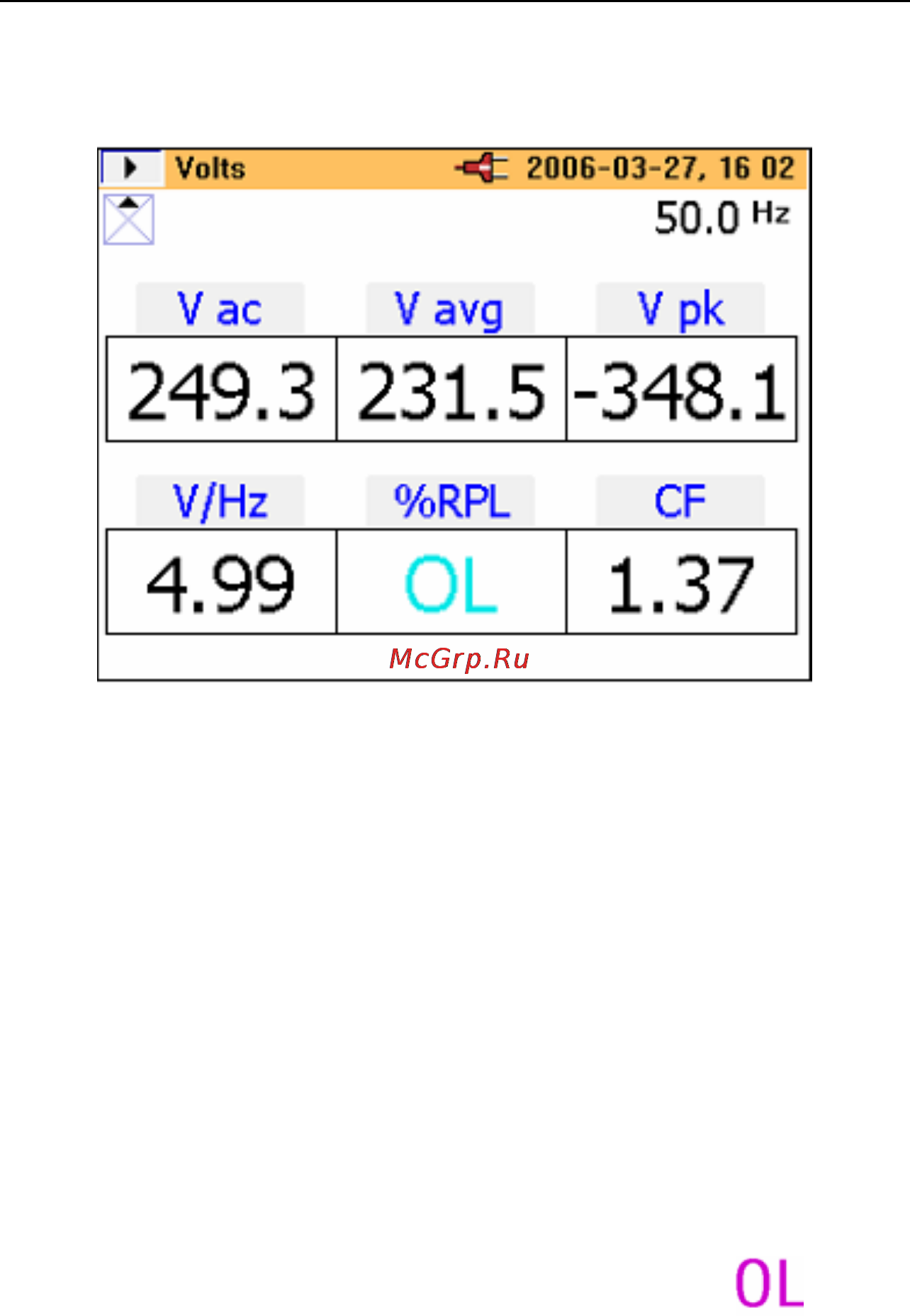

J, which displays the following six-value screen.
Return to the previous screen by pressing K.
The Minimum/Maximum value screens may be accessed by pressing
R. The
live value will be displayed initially. In addition, the time (or Run Time)
elapsed since the time the button was pressed will be indicated above the
measurement in green text.
The minimum value (REC – MIN) registered during the elapsed period may be
accessed by pressing
G. Additional presses will show the maximum
registered value (REC – MAX) and average value (REC – AVG).
Pressing
F reverses the viewing process.
Note
Over-range values are indicated for all measurements with:
.
This applies to all measured values. Ensure the correct range is
selected before proceeding to make any measurements.
