Power Quality Clamp Meter
Measurement Function Overview
53
The upper part of the orange bar is the maximum value of the harmonic, and
the lowest part of the orange bar is the minimum value measured during the
logging period. The elapsed time of the logging period is displayed as Run
Time on the display.
The cursor may be moved left or right to select individual harmonics from dc
to the 40
th
harmonic.

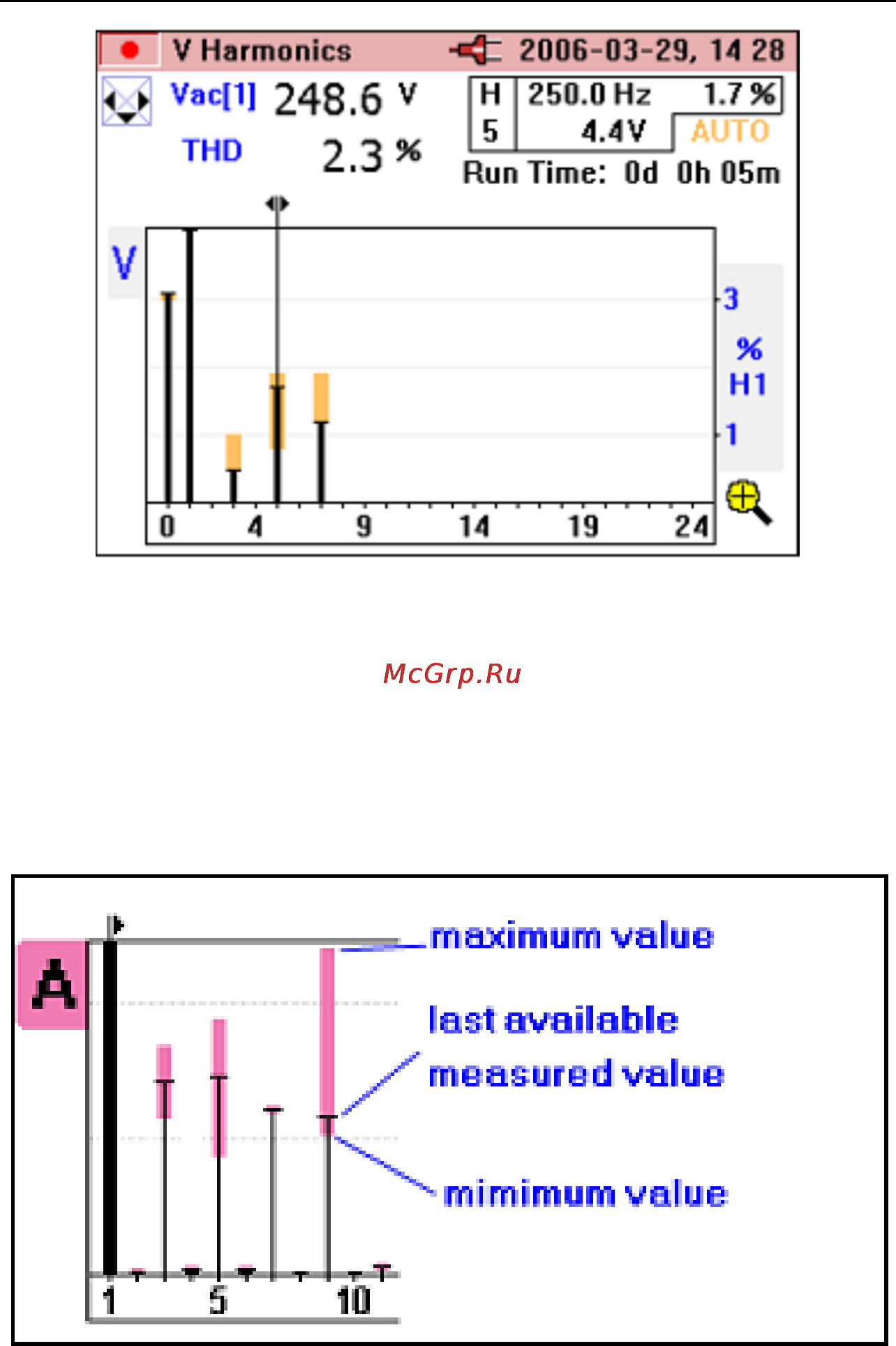

Figure 16 shows the detailed view of the harmonic recording display.
Figure 16. Detailed View of Harmonic Recording Display
