345
Users Manual
56

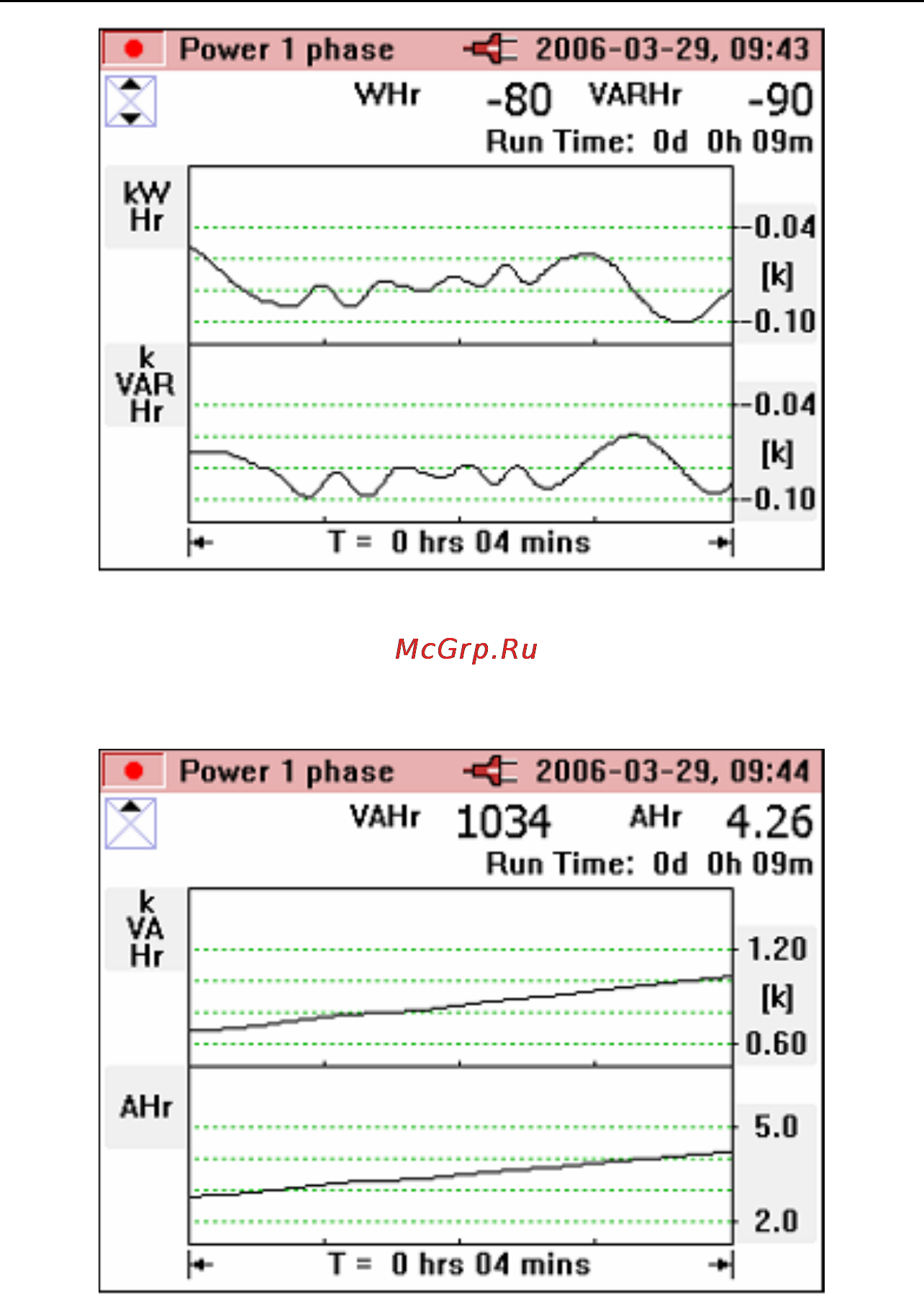

VA and AHr is unsigned, so can never decrease and never be below the zero
axis as shown in the following display.
