345
Users Manual
60
On this Log-Inrush Current setup screen, the peak current present at the
instrument terminals is displayed (Max peak current) to provide guidance for
the required trigger levels.
The current-trigger level may be selected from either a preset value of 0.5, 1, 3,
10, 30, 100, or 300 A, or a customized value from 0 to 1000 A in 0.1 A steps.
The capture time may also be chosen from 1, 3, 10, 30 100, or 300 seconds.
The capture time refers to the width of the time window on the Clamp Meter
screen.

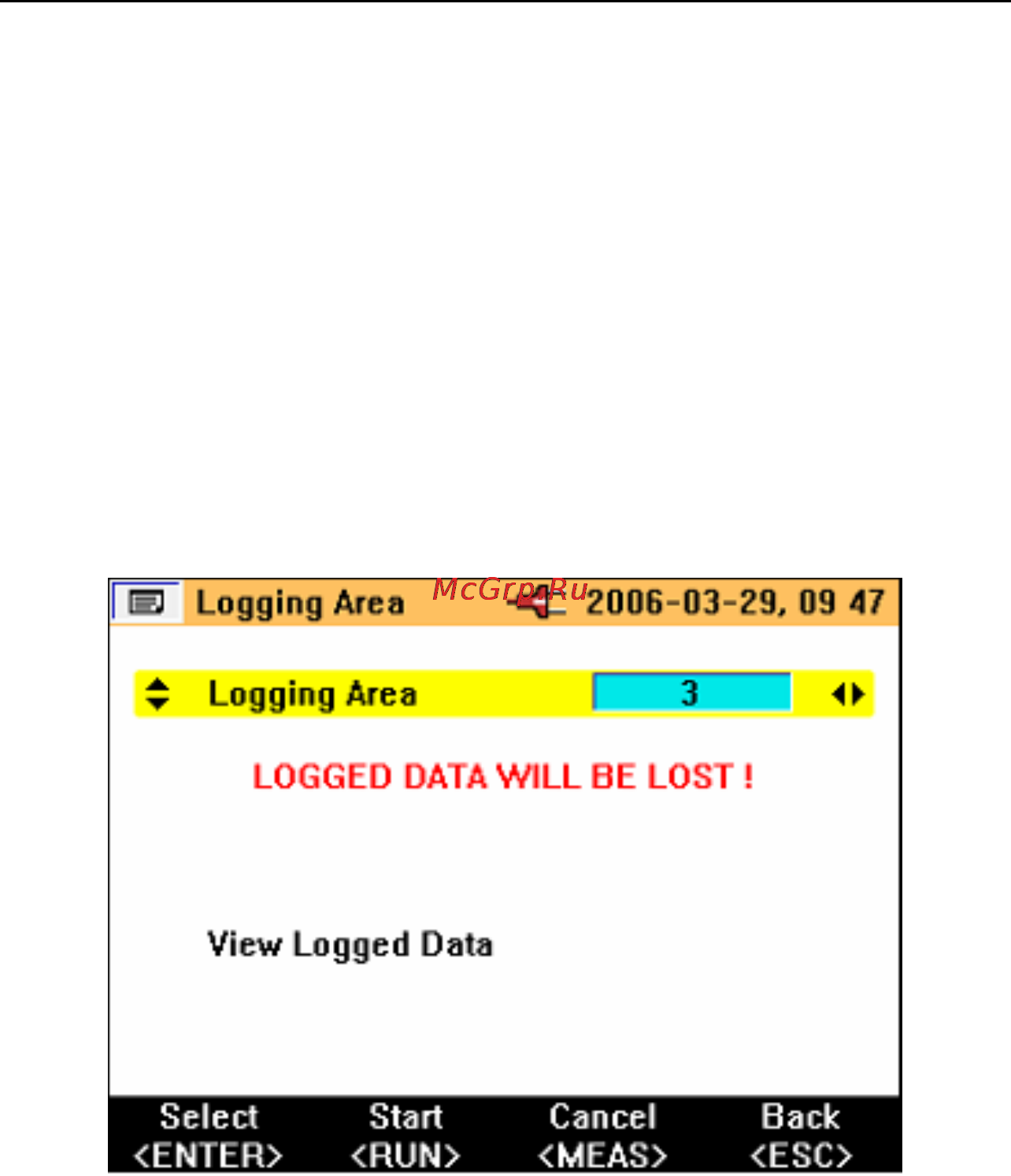

On pressing
H, the Logging Area settings screen, as shown below, indicates
where the Inrush Current data will be stored. The logging areas 1, 2, 3 or areas
1, 2 and 3 combined may be selected.
A single logging area can store about 1000 inrush captures.
Once the required settings are made, the instrument is ready for data capture;
press
H to start the capture.
