345
Users Manual
62
Once the inrush event is complete (that is, the capture time has elapsed), the
message WARNING – SCREEN NOT LIVE flashes at the top of the
display.

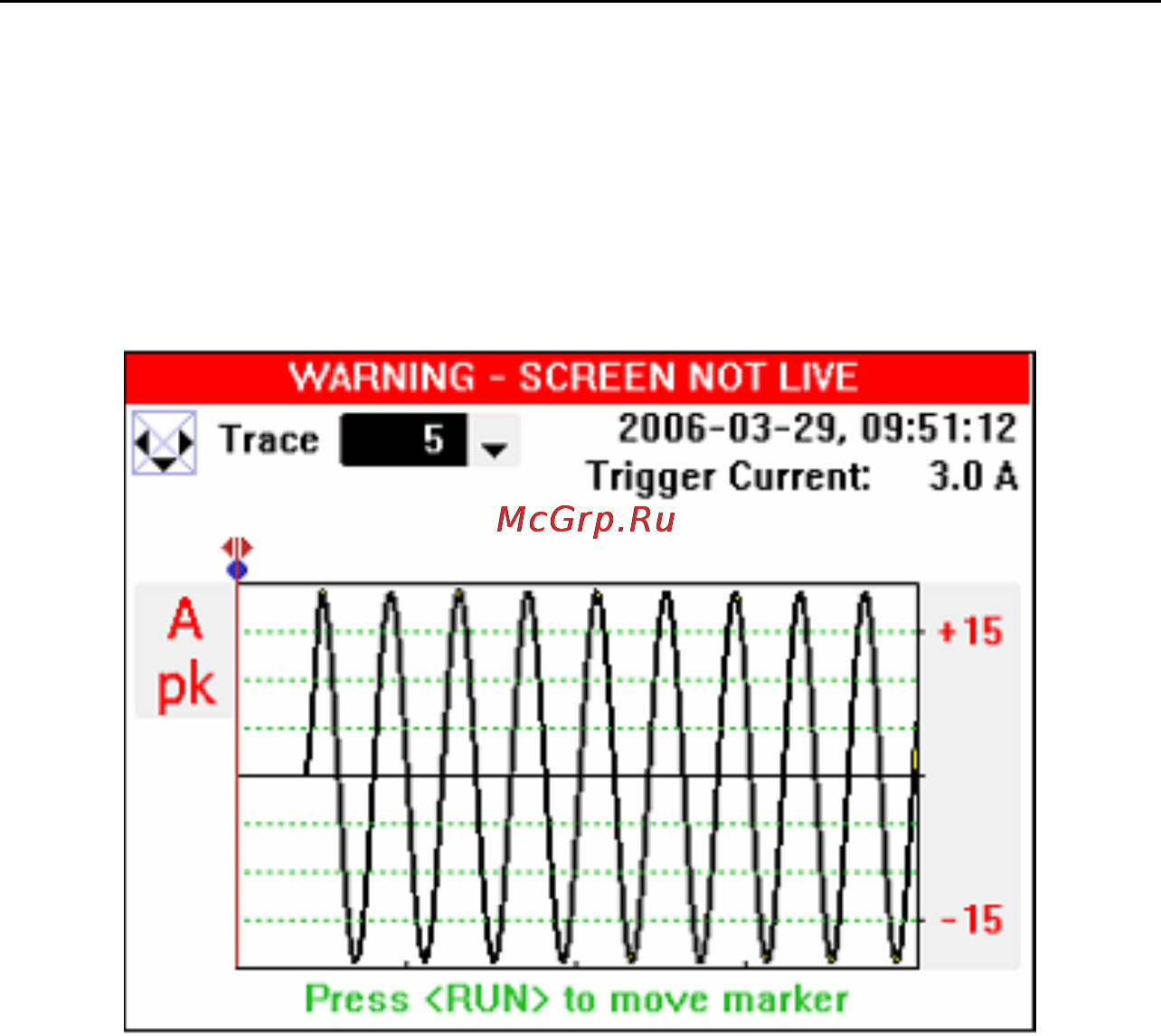

The Trace value is incremented accordingly as shown in the following display.
In the following example, there are 5 traces stored.
Stored traces may be reviewed using the right and left the cursor keys. The
inrush event may now be analyzed by moving the cursor across the captured
signal using the FG keys.
As the cursor is moved, the maximum and minimum vales at that point are
displayed in the top right hand corner of the screen (there will be a group of
values captured for each displayed point on the screen) as shown in the
following display.
