Chapter 11 Description of Parameter Settings|C200 Series
11-17
voltage at the low frequency to prevent motor damage.
Pr.01-35 to Pr.01-42 is the V/f curve for the motor 2. When multi-function input terminals
Pr.02-01~02-08 and Pr.02-26 ~Pr.02-31 are set to 14 and enabled, the AC motor drive will act as
the 2nd V/f curve.

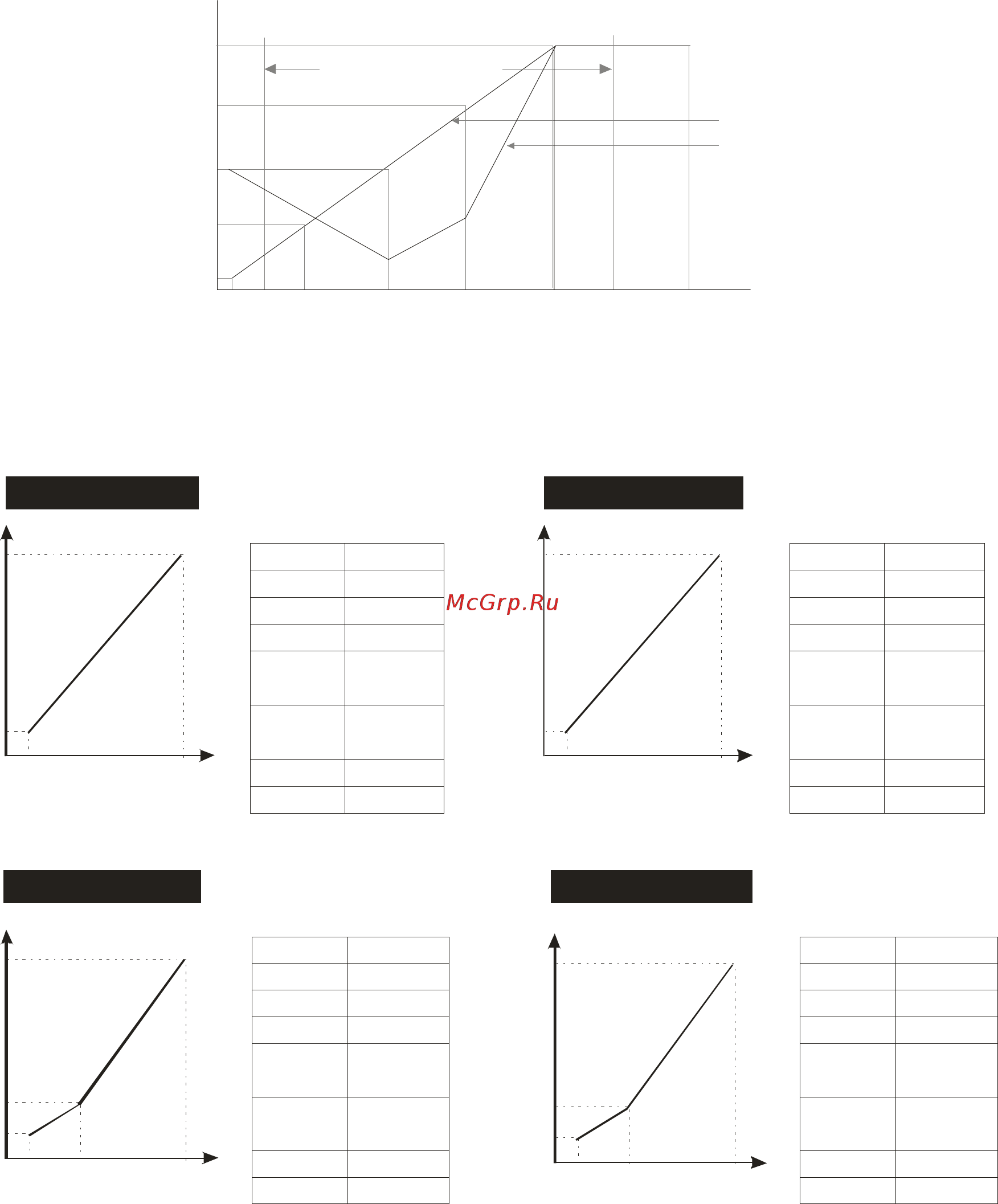

The V/f curve for the motor 1 is shown as follows. The V/f curve for the motor 2 can be deduced
from it.
01-05 01-03 01-01
01-06
01-04
01-02
01-00
01-07
01-08
01-09
01-11 01-10
1st Output
Voltage Sett ing
Output Frequency Lower Limit
Frequency output
ranges limitation
R eg ul ar V /f Cur ve
Special V/f Curve
Volta
g
e
4th Freq.
Start Freq.
3rd Freq.
2nd Freq.
1st Freq.
Maximum Output
Frequency
V/f Curv
e
2nd Output
Voltage Setting
3rd Output
Voltage Setting
4th Output
Voltage Setting
Output Frequency
Upper Limit
Frequency
Common settings of V/f curve:
(1) General purpose
VV
FF
220
220
10
10
1.31.5 50.0
60.0
60.001-00
01-01
01-02
01-03
01-05
01-04
01-06
01-07
01-08
60.0
220.0
1.50
10.0
1.50
10.0
50.001-00
01-01
01-02
01-03
01-05
01-04
01-06
01-07
01-08
50.0
220.0
1.30
12.0
1.30
12.0
Motor spec. 60Hz
Motor spec. 50Hz
Pr. Setting
Pr.
Setting
(2) Fan and hydraulic machinery
60.001-00
01-01
01-02
01-03
01-05
01-04
01-06
01-07
01-08
60.0
220.0
30.0
50.0
1.50
10.0
50.001-00
01-01
01-02
01-03
01-05
01-04
01-06
01-07
01-08
50.0
220.0
25.0
50.0
1.30
10.0
Motor spec. 60Hz
Motor spec. 50Hz
Pr. Setting
Pr.
Setting
V
F
220
10
1.5
60.0
50
30
V
F
220
10
1.3
50.0
50
25
