Chapter 7 Optional Accessories|C200 Series
7-17
Frame A0
Applicable model
VFD015CB23A-20/-21/-21M;

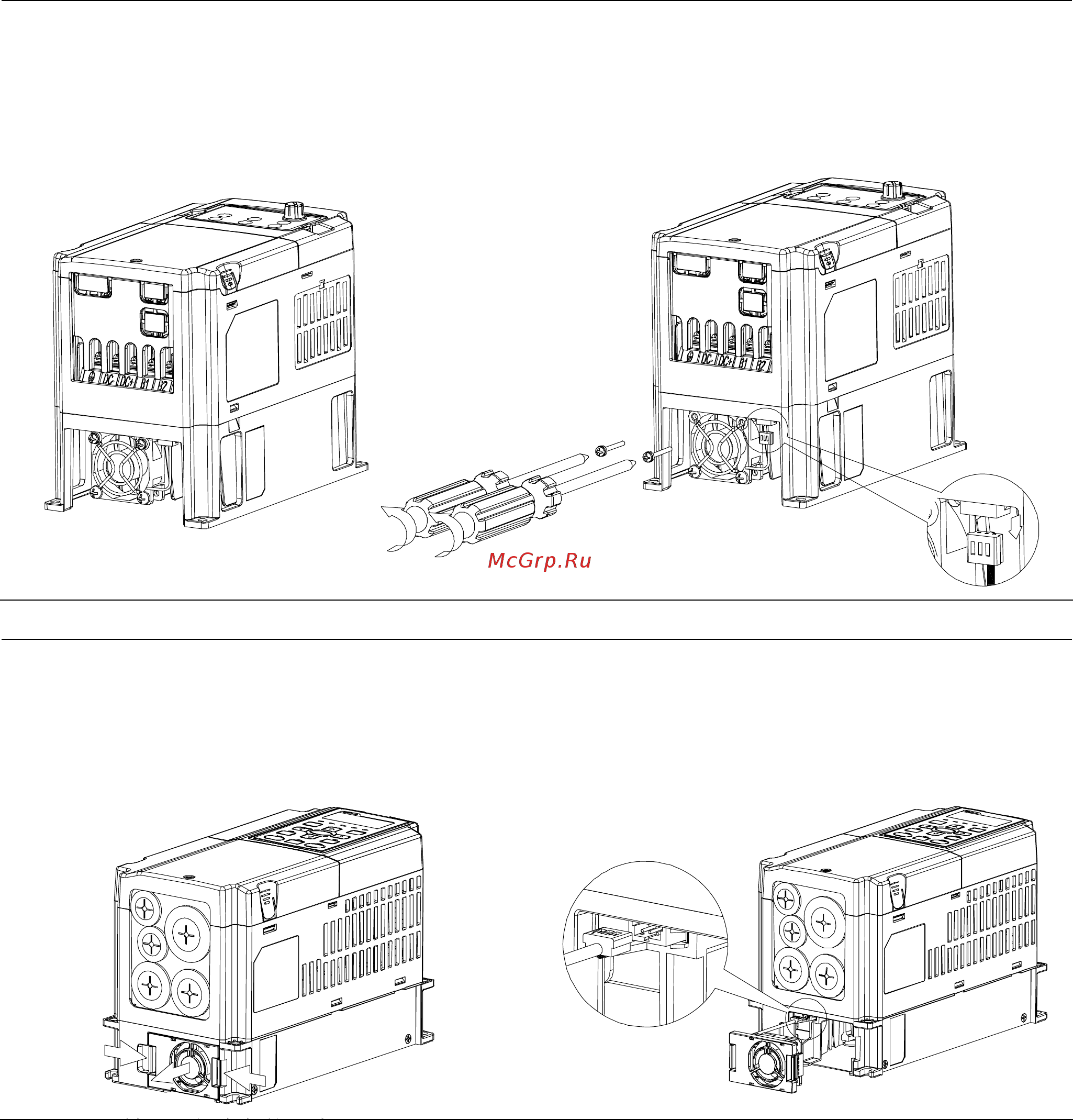

1) Disconnect the power terminal before removing the fan. (As shown below.)
2) Loosen the two screws to remove the fan.
Frame A
Applicable model
VFD040CB43A-20/-21/-21M; VFD055CB43A-20/-21/-21M;VFD075CB43A-20/-21/-21M
1. Press the tabs on both side of the fan to
successfully remove the fan. (The arrow)
2. Disconnect the power terminal before removing
the fan. (As shown below.)
※ 1 VFD040CB43A-20/-21/-21M; VFD055CB43A-20/-21/-21M: optional fan model#『MKCB-AFKM1』.
This fan is a 12Vdc ON/OFF control fan.
※ 2 VFD075CB43A-20/-21/-21M: optional fan model #『MKCB-AFKM2』.
This fan is a 12Vdc PWM control fan.
