Chapter 13 CANopen Overview |C200 Series
13-8

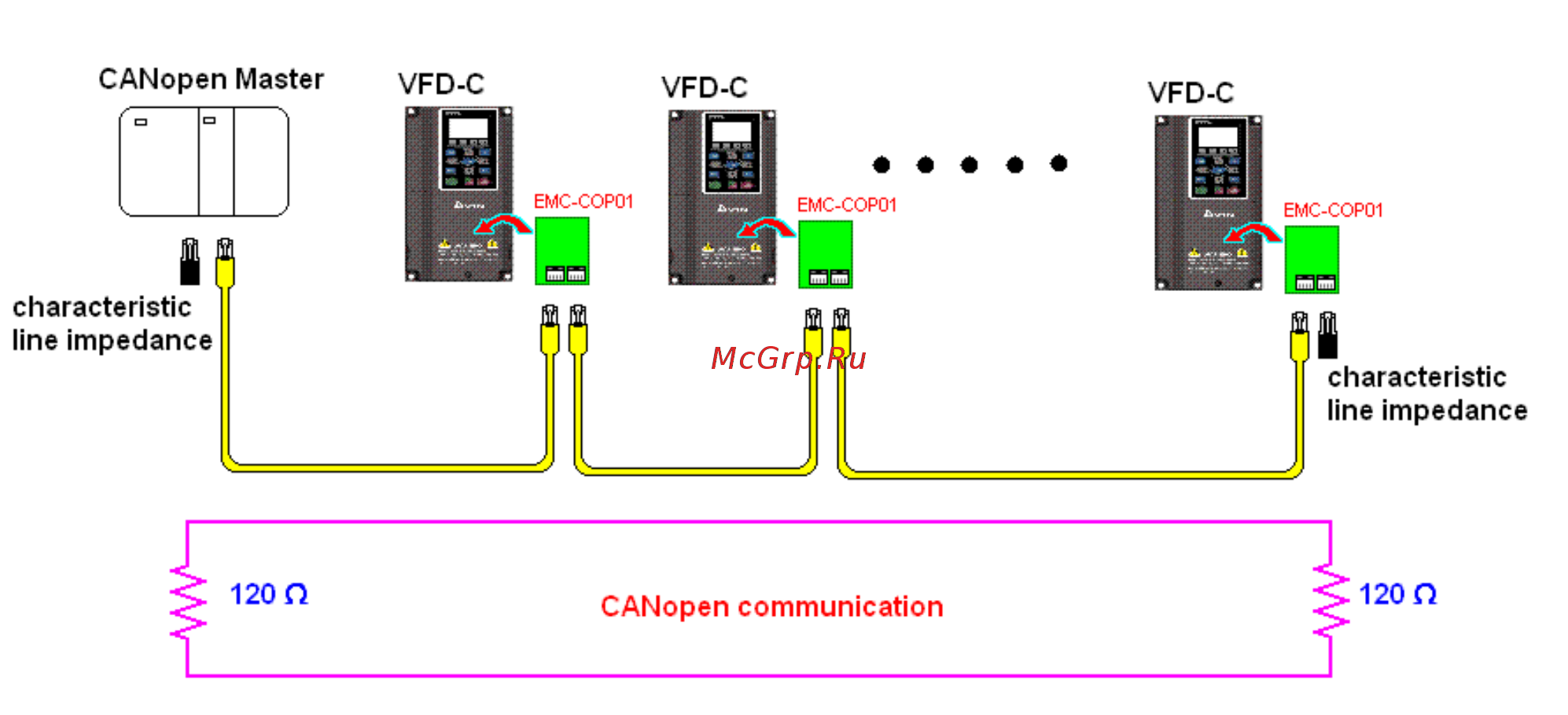

13.2 Wiring for CANopen
An external adapter card: EKCB-HUB01 is used for CANopen wiring; establish CANopen to VFD
C200 connection. The link is enabled by using RJ45 cable. The two farthest ends must be terminated
with 120Ω terminating resistors.
