Chapter 14 PLC Function |C200 Series
14-8
After finishing Step 2, the program will be downloaded from WPLSoft to the AC motor drive by
the communication format.

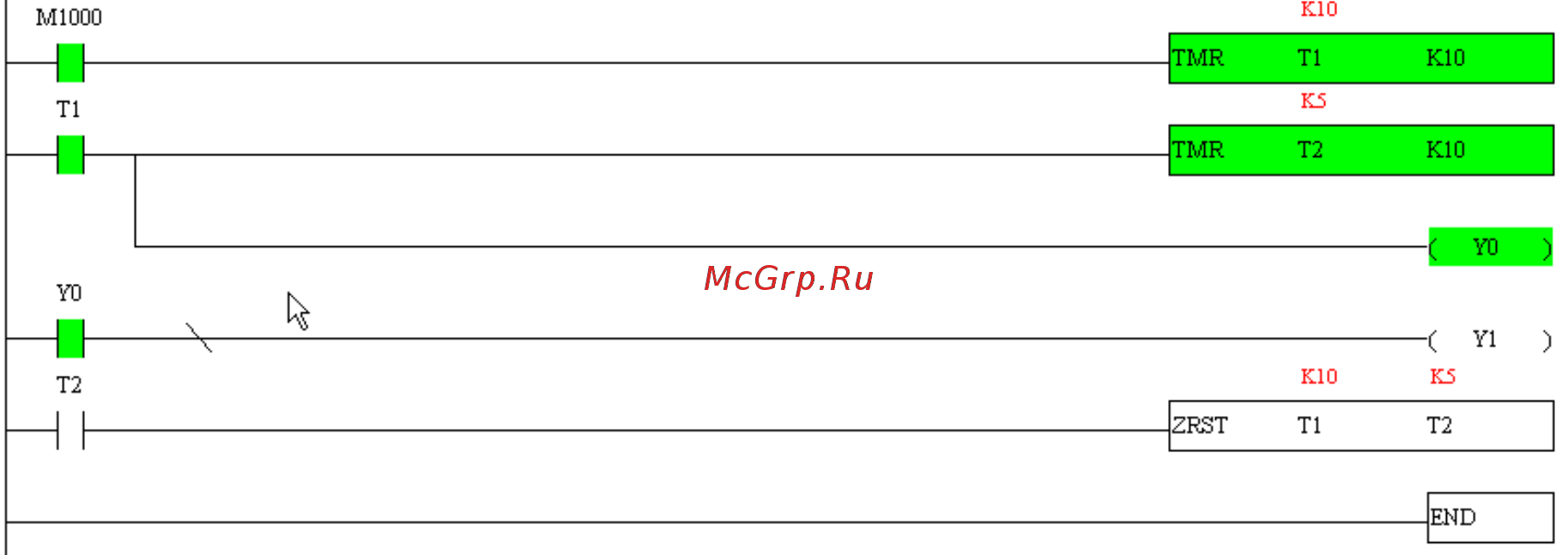

14.3.6 Program Monitor
If you execute “start monitor” in the communication item during executing PLC, the ladder
diagram will be shown as follows.
