Chapter 7 Optional Accessories |C200 Series
7-18
USB/RS-485 Communication Interface IFD6530
Warning
3 Please thoroughly read this instruction sheet before installation and putting it into use.
3 The content of this instruction sheet and the driver file may be revised without prior notice. Please
consult our distributors or download the most updated instruction/driver version at
http://www.delta.com.tw/product/em/control/cm/control_cm_main.asp
1. Introduction
IFD6530 is a convenient RS-485-to-USB converter, which does not require external power-supply and
complex setting process. It supports baud rate from 75 to 115.2kbps and auto switching direction of data
transmission. In addition, it adopts RJ-45 in RS-485 connector for users to wire conveniently. And its tiny
dimension, handy use of plug-and-play and hot-swap provide more conveniences for connecting all
DELTA IABU products to your PC.
Applicable Models: All DELTA IABU products.

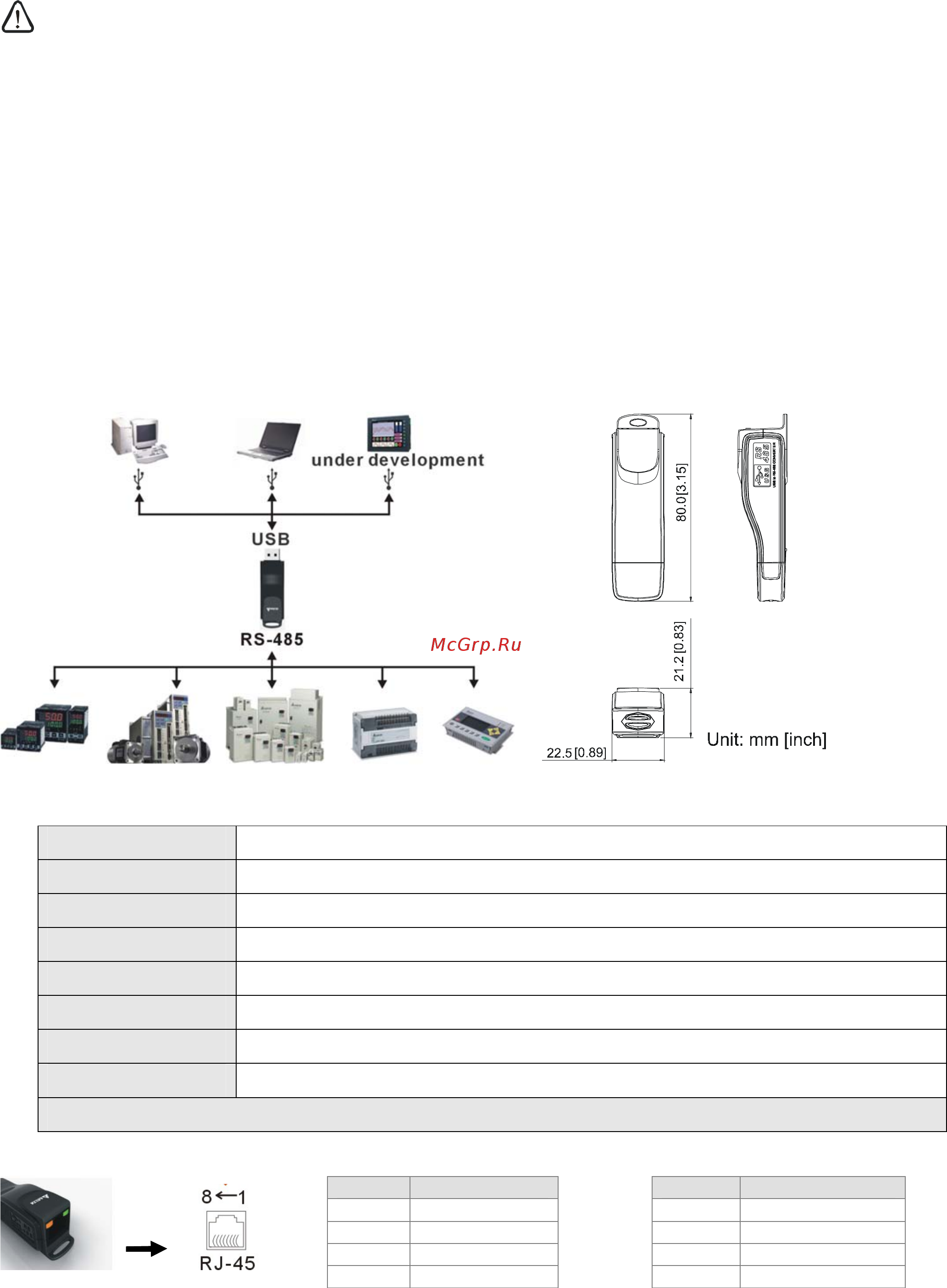

(Application & Dimension)
2. Specifications
Power supply No external power is needed
Power consumption 1.5W
Isolated voltage 2,500VDC
Baud rate 75, 150, 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200 bps
RS-485 connector RJ-45
USB connector A type (plug)
Compatibility Full compliance with USB V2.0 specification
Max. cable length RS-485 Communication Port: 100 m
Support RS-485 half-duplex transmission
RJ-45
PIN Description PIN Description
1 Reserved 5 SG+
2 Reserved 6 GND
3 GND 7 Reserved
4 SG- 8 +9V
